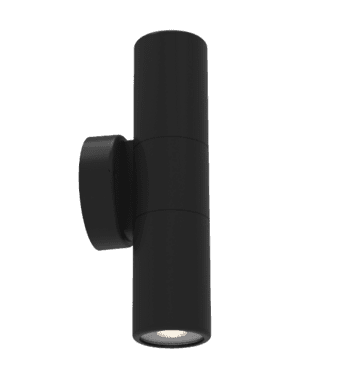

Cassia LED CA1 - G412-LED

A compact and versatile bi-directional wall grazer
Configure this product Features Specifications Accessories

Product Overview

A compact, fixed position, direct/indirect accent used for grazing walls or other accent illumination tasks. The luminaire is constructed from either copper or powder-coated aluminium, providing a variety of aesthetic options. This luminaire is ideal for use in modern architectural designs, and features the Lumascape d5 driver technology for advanced dimming and control options.

Features

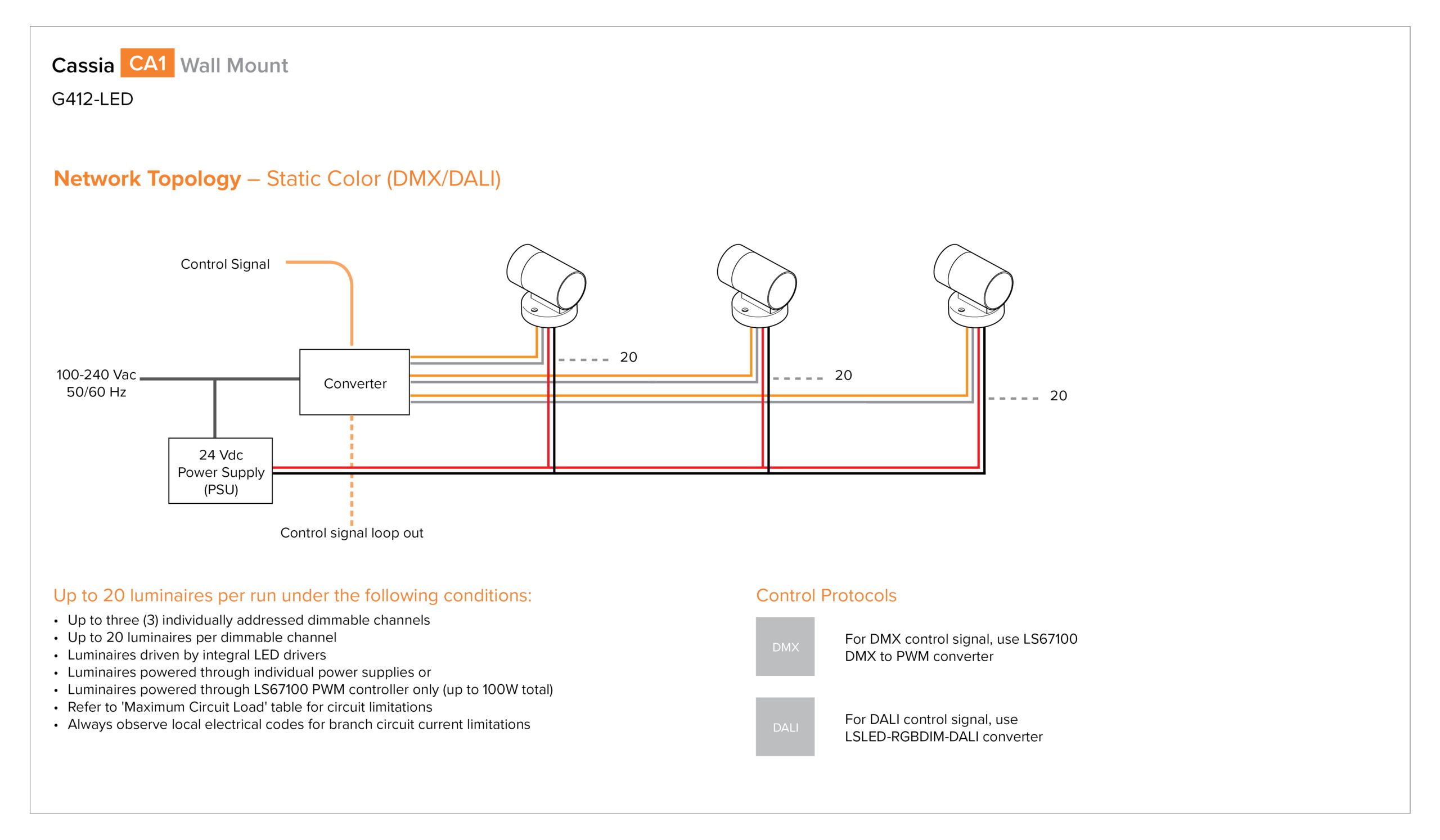

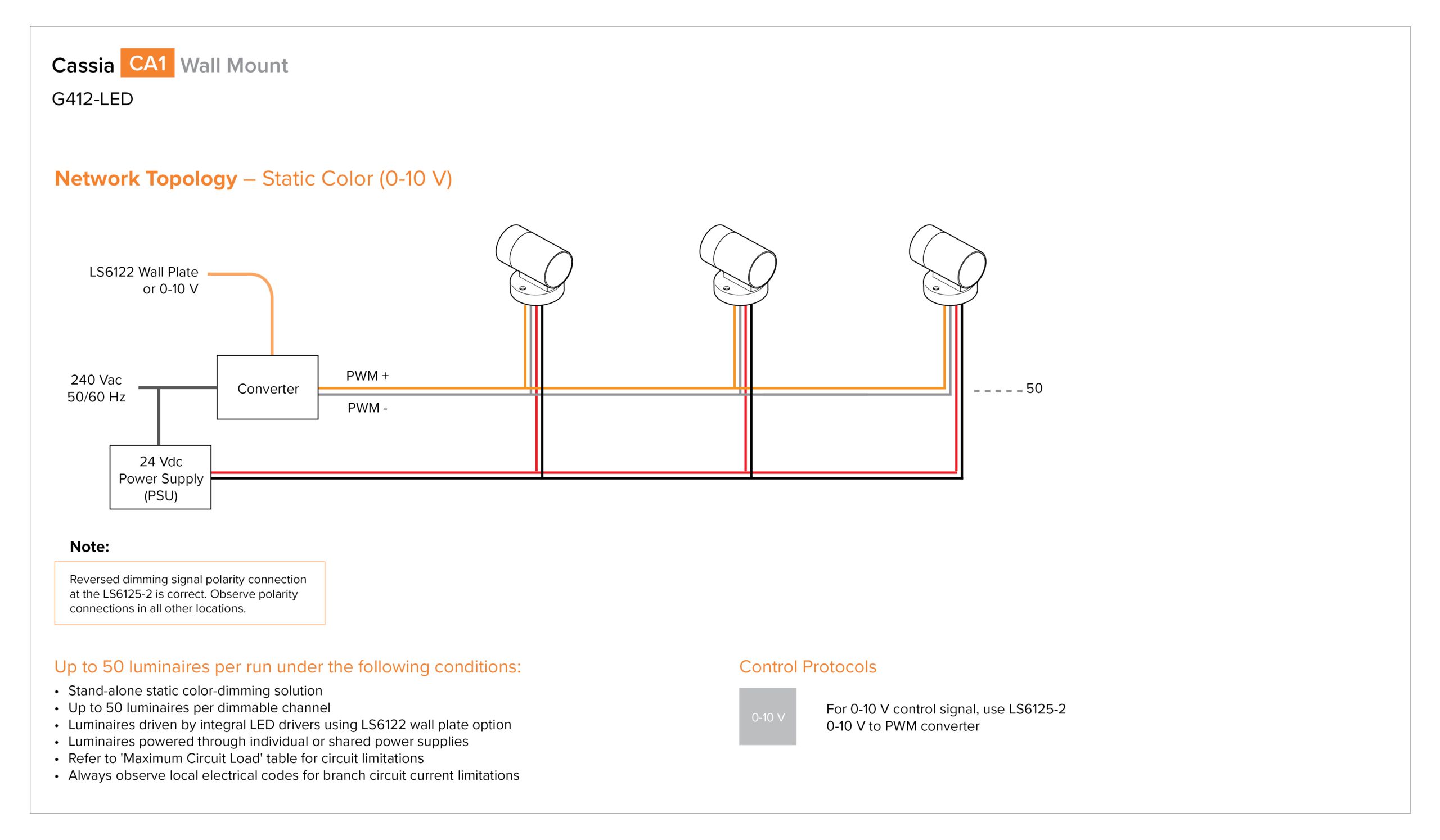

Lumen Output 2 x 556lm LED Power 2 x 6W Power Consumption 2 x 7.5 W Input Voltage 24 Vdc Control Protocol PWM (0-10V, DMX) IP Rating IP65 Compliance CE RCM Color Options Warm White Cool White Blue (470 nm) Data Sheet

Specifications

Accessories

Accessories
G624-2 Glare Shield
G624-CU Copper Glare Shield

Downloads

Data Sheet Install Guide
G412-LED - IES Files.zip ZIP (58.75 KB)

Technology

Product Configurator

G412-LED _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Cassia LED CA1 below

Light Engine

Required

2 x 6W (12)

Light Source

Required

Static White (D7)

Static White (D7)

2,700 K (80 CRI, 3 SDCM)

Static White (H6)

Static White (H6)

3,000 K (80 CRI, 3 SDCM)

Static White (W4)

Static White (W4)

4,000 K (80 CRI, 3 SDCM)

Single Color (B4)

Single Color (B4)

Blue (470 nm)

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Narrow (NR)

Narrow (NR)

14°

Narrow Medium (NM)

Narrow Medium (NM)

25°

Medium (ME)

Medium (ME)

30°

Wide (WD)

Wide (WD)

40º

Input Voltage

GardenQ

Required

24V DC - Dimmable (D)

24V DC - Dimmable (D)

PWM Dimmable Driver, 24V DC

Finish

Custom powder coat colours are available. Please consult factory.

Required

Polished Copper (CU)

Polished Copper (CU)

Polished Copper finish

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Accessories

Accessories

Copper Glare Shield (G624-CU-2)

2 x Polished copper Glare Shield

Glare Shield (G624-2)

2 x Glare Shields. Order to Match Luminaire Powder Coat Colour
