Pharos Designer LPC Lighting Playback Controller

Pharos Designer LPC Lighting Playback Controller - LPC

Pharos Designer LPC Lighting Playback Controller

Configure this product Features Specifications

Product Overview

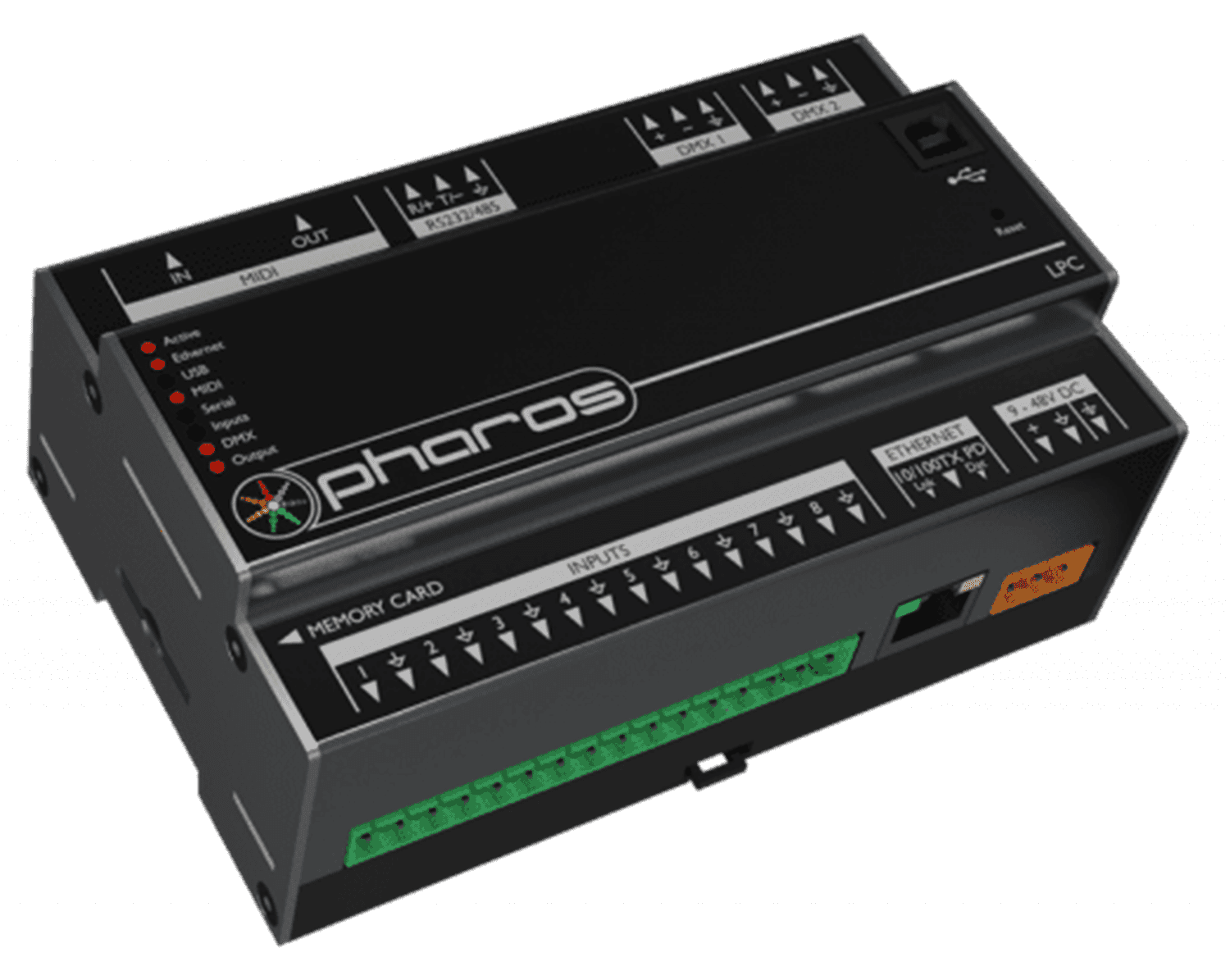

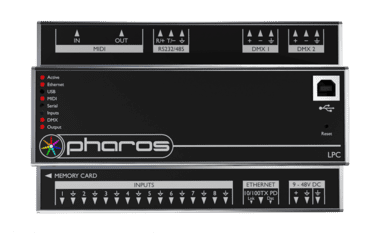

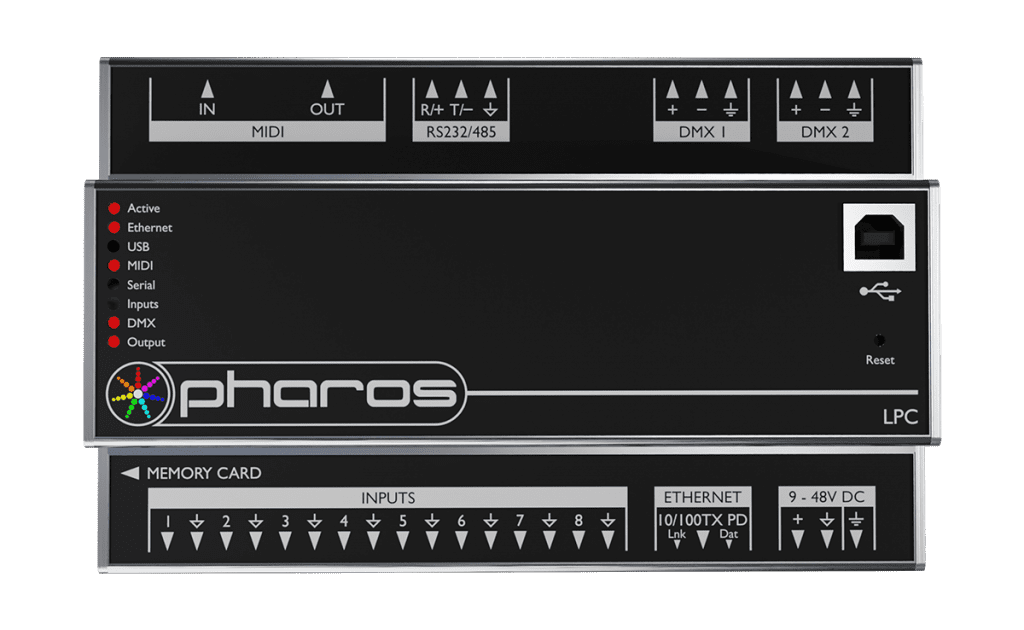

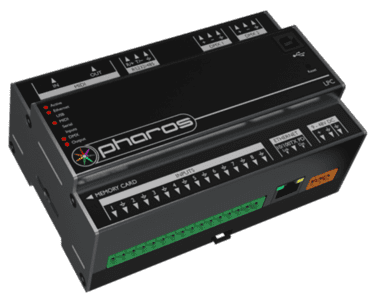

The Pharos Designer LPC (Lighting Playback Controller) is an award-winning, all-in-one DIN-rail mounted DMX lighting control solution for themed entertainment and LED lighting installations.

The LPC features individually controllable and independently running timelines and scenes, letting you build dynamic, precise, fully customisable pre-programmed lighting effects with the freedom of real-time manual overrides and the versatility of powerful show control and integration features.

Its compact form-factor and minimal power requirements make the LPC suitable for installation anywhere – including in weatherproof enclosures or even on roller-coaster ride vehicles. Designed for 24/7 operation and total reliability.

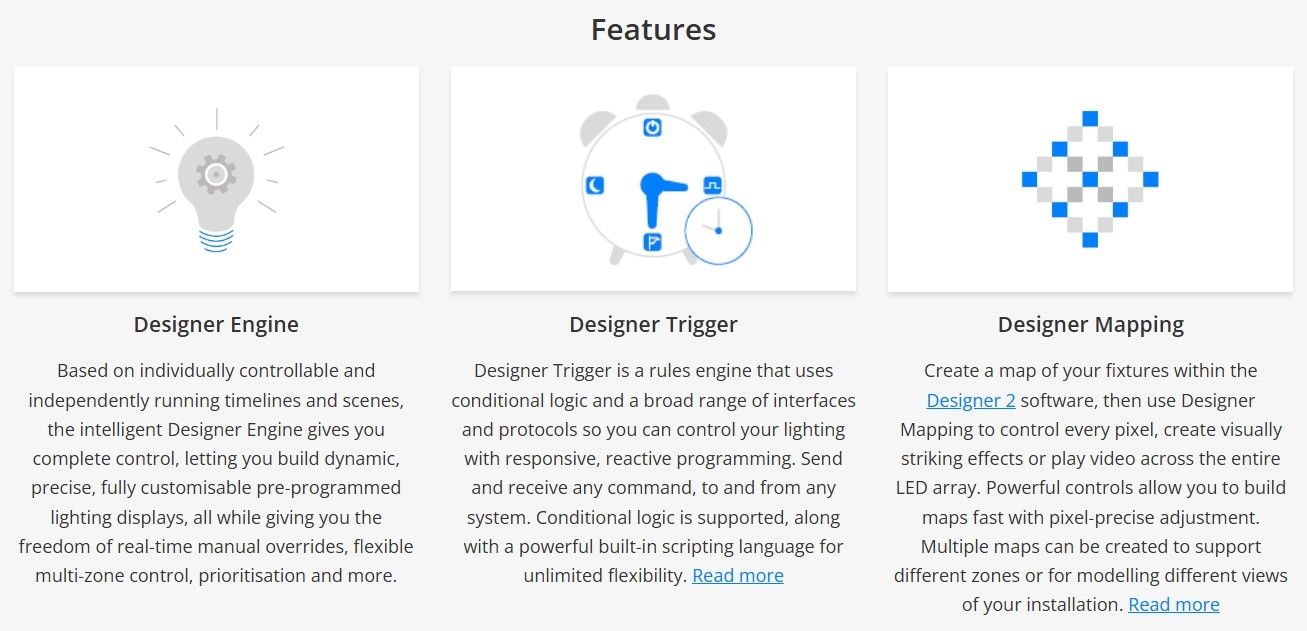

Features

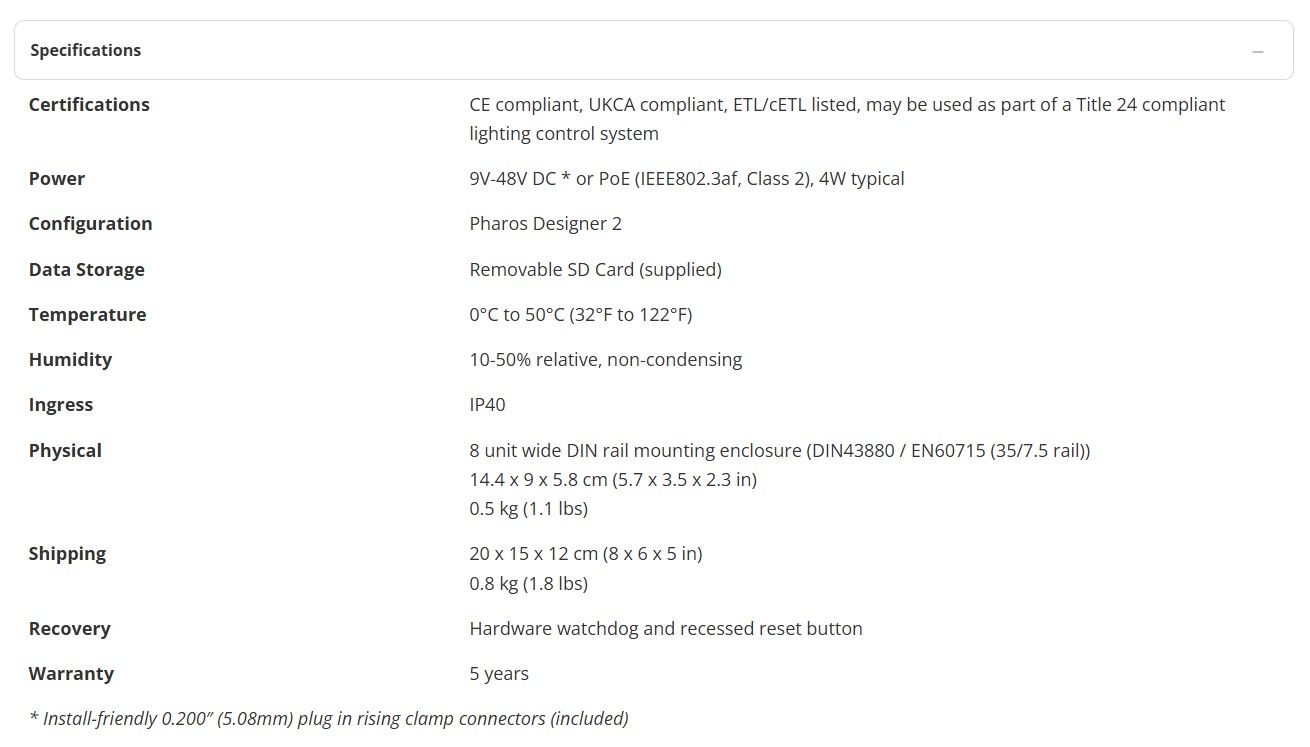

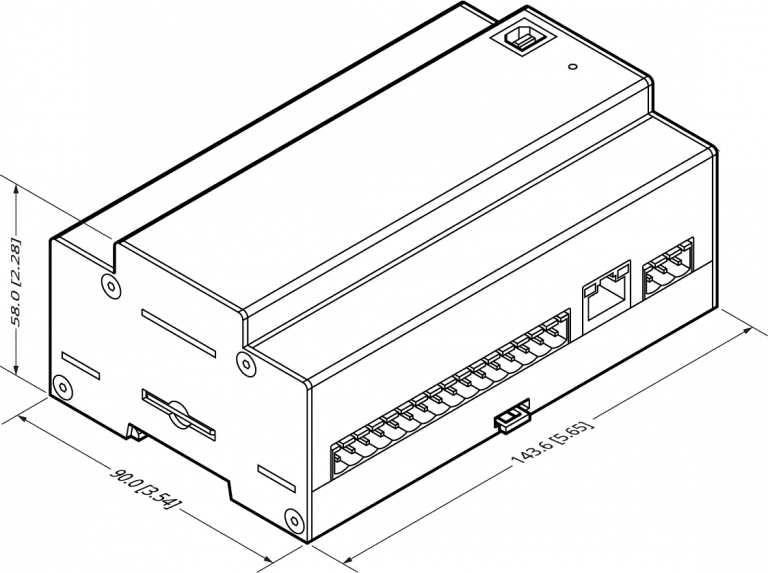

Power 9V-48V DC or PoE (IEEE802.3af, Class 2), 4W typical Data Storage Removable SD Card (supplied) Temperature 0°C to 50°C (32°F to 122°F) Humidity 10-50% relative, non-condensing Ingress IP40 Physical 8 unit wide DIN rail mounting enclosure (DIN43880 / EN60715 (35/7.5 rail) Dimensions 14.4 x 9 x 5.8 cm (5.7 x 3.5 x 2.3 in) Weight 0.5 kg (1.1 lbs) Compliance
