Erden E8

Erden E8 - LS3080

An architectural-grade, high-powered in-ground.

Configure this product Features Specifications Accessories

Product Overview

A high-powered inground uplighter that combines technology and performance in a modern form factor. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols using mains voltage. engages as internal temperatures increase to keep light output consistent. Only under extreme conditions will the luminaire take control and dim the output gradually and smoothly. Lighting professionals now have greater creative flexibility with the choice of designer* and standard LED options. Available in white, colour-changing and tunable-white light engines.

* Reduces colour-over-angle separation, fewer striations in the beam and shorter blending distances.

Accessories
LS640-2	Pre-Installaion Mounting Collar
LS640-K	Pre-Installation Mounting Kit
LS6234	Cross Hatch Louvre
LS6235	Diffusion Media

Features

Lumen Output 3,790 lm Power Consumption 40 W Typical Lifetime (TM21 Reported) > 60,000 hours (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 179,506 hours (B10, L90, TM21 Projected) Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 60 Hz Earth Leakage 0.3 mA @ 120 Vac, 0.4 mA @ 240 Vac, 0.6 mA @ 277 Vac Control Protocol DMX/RDM, Artnet, PWM, 0-10 V (Sink or Source) IP Rating IP68 IK Rating IK10 Compliance

Color Options Warm White

Data Sheet

Specifications

Accessories


LS640-2	Pre-Installaion Mounting Collar
LS640-K	Pre-Installation Mounting Kit
LS6234	Snoot Array Louver
LS6235	Diffusion Media

Downloads

Data Sheet

IES Files LS3080 ZIP (1.01 M) DXF Files LS3080 ZIP (72.46 KB) BIM Files LS3080LED ZIP (1.78 M) Install Guide - Pre-Install (connector) PDF (3.46 M) Install Guide - Pre-Install (hardwired) PDF (3.08 M) Install Guide - Direct Burial PDF (2.47 M) Advertisement LS3080 PDF (1.28 M) CAD Details Link

Technology

Product Configurator

LS3080 _ _ _ _ _ _ _ _ _ _ _

Reset to Default Clear Selected Add

Customise Erden E8 below

Installation Type

Select the installation type you require.

Required

Pre-Installation

Mounting Collar

Direct Burial

Light Engine

Required

30 W (30)

LED Type

Required

Designer (D)

Ideal for applications where colour consistency and colour over angle are most important (e.g., grazing and accent lighting)

Light Source

Required

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

5,000K (70 CRI, 3 SDCM)

Dynamic Colour (4CA)

RGBA

Dynamic Colour (4BW)

RGBW with Royal Blue

Tunable White (2WT)

2,700 K - 6,500 K

Lens

Required

OptiClear™ (A)

Glass of very high optical purity and load strength. Suitable for walk-over and drive-over applications.

GripGlass™ (G)

OptiClear™ glass with slip reduction glazing process. Suitable for walk-over and drive-over applications.

Cover

Required

Round recessed, stainless steel, polished (B)

Round recessed, stainless steel, brushed (H)

Round flush type, stainless steel, polished (D)

Round flush, stainless steel, brushed (I)

Round flush, stainless steel, polished (M)

Round flush, stainless steel, brushed (N)

Connection Type

For Ingrounds

Required

MicroAntiLeach Cable (84)

Flexible cable for hard wired installations, includes MicroAntileach. For pre-installation applications a pre-installation kit is required - order separately.

IP68 Connector with Junction Box (87)

Not suitable for colour changing or dimming applications. Pre-installation kit required - order separately. For all applications requiring mounting collar, consult factory

Armoured Cable (81)

Armoured cable for hard wired installations, includes MicroAntileach and a junction box

Connectorised with Junction Box (77)

Flexible cable for connectorised installations, includes MicroAntileach. This method allows for a tool free final connection to the luminaire For all applications requiring mounting collar, consult factory.

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

6°

Narrow (NR)

10°

Narrow Medium (NM)

15°

Medium (ME)

30°

Wide (WD)

45°

Wide Flood (WF)

60°

Narrow Horizontal (NH)

10º x 40º

Linear Horizontal (LH)

10º x 60º

Linear Vertical (LV)

60° x 10°

Narrow Vertical (NV)

40° x 10°

Medium Horizontal (MH)

20º x 40º

Medium Vertical (MV)

40° x 20°

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

60° x 20°

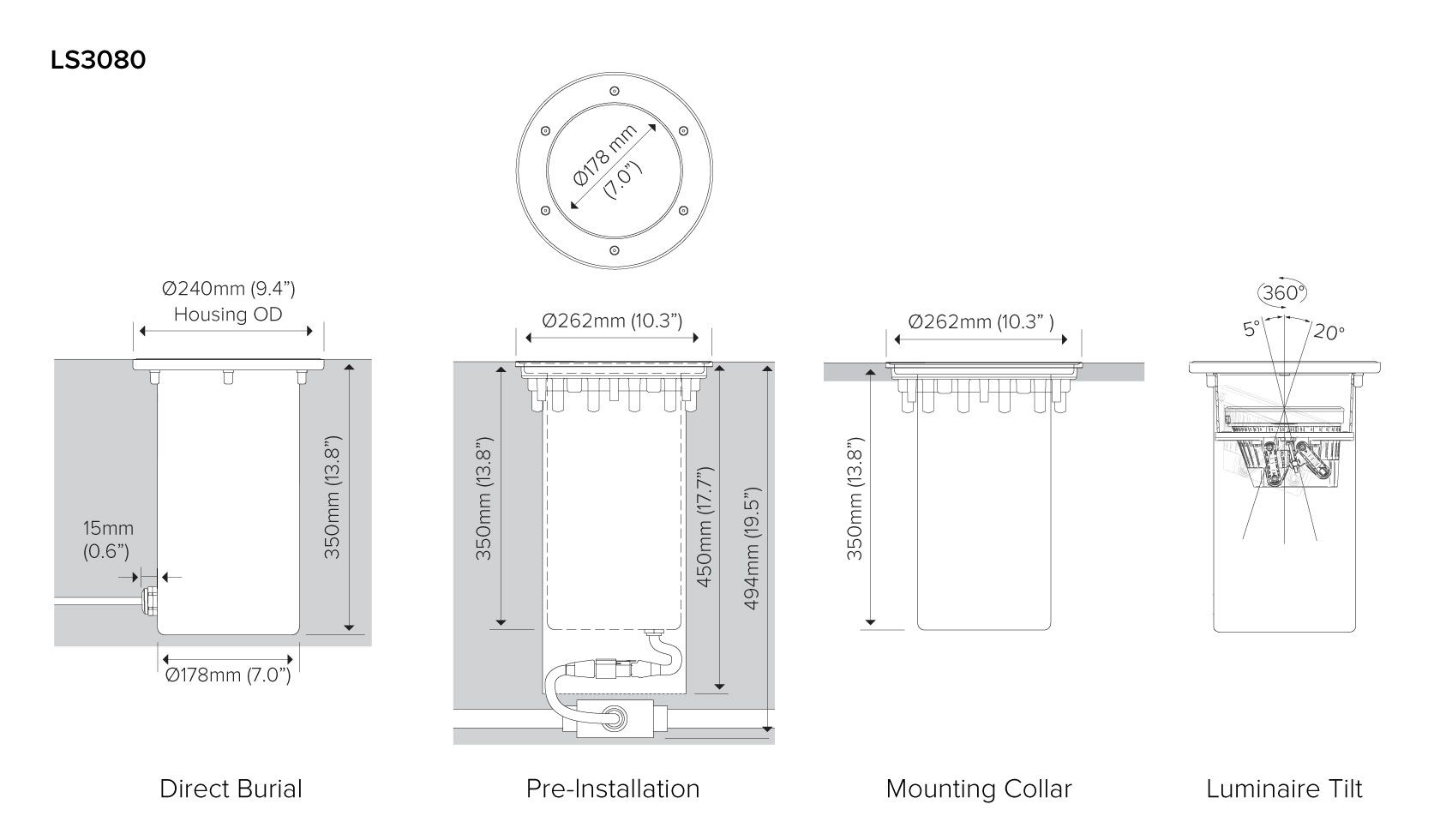

Housing Depth

Required

Pre-Install Blockout (24)

450mm / 17.7”

More info

Mounting collar (24)

350mm / 13.8”

More info

Direct Burial (25)

350mm / 13.8”

More info

Cable Entry

Required

Side (N)

Bottom (Q)

Input Voltage

Required

110-240 Vac, 50/60 Hz (01)

Mains Voltage

Control

Required

Non-Dimmable (ND)

For single color, non-dimming applications only.

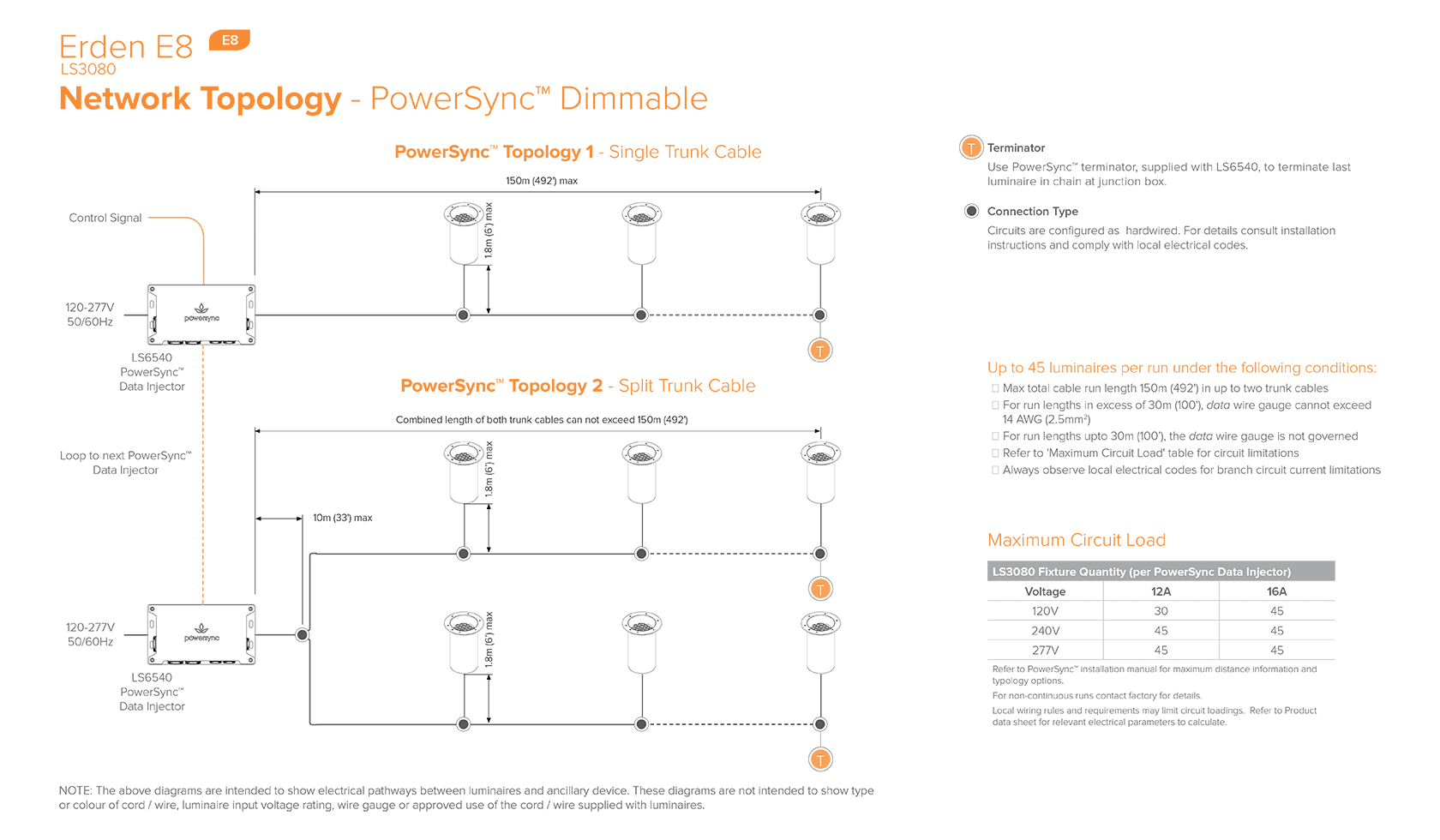

PowerSync™ (PS)

Required for all dimming and color-changing applications. LS6540 (mains voltage) or LS6550 (low voltage) data injector required (order separately).

Accessories

Pre-Installation Options

Pre-Installation Kit (LS640-K-84)

For use with Type 84 connection. Connection to the branch circuit via junction box (supplied by others) or other approved method. Price inclusive with Pre-Installation Blockout luminaire.

More info

Pre-Installation Kit (LS640-K-87)

For use with mains voltage. Includes 1m MicroAntiLeach cable with an IP68 connector and a 3 way junction box. Not suitable for dimmable luminaires. Price inclusive with Pre-Installation Blockout luminaire.

More info

Pre-Installation Kit (LS640-K-77-01)

More info

Mounting Collar (LS640-2)

For use in decks and tree grates. Connection to the branch circuit via junction box (supplied by others) or other approved method. Price inclusive with Pre-Installation Mounting Collar luminaire.

More info

Shielding & Glare Control

Snoot Array Louver (LS6234)

Provides additional glare control. Available in black only and ordered separately.

Lens

Diffusion Media (LS6235-10)

Diffusion Media, 10° Microstructure Film

Diffusion Media (LS6235-20)

Diffusion Media, 20° Microstructure Film

Diffusion Media (LS6235-30)

Diffusion Media, 30° Microstructure Film

Diffusion Media (LS6235-40)

Diffusion Media, 40° Microstructure Film
