In-ground
Erden E4
Product Overview

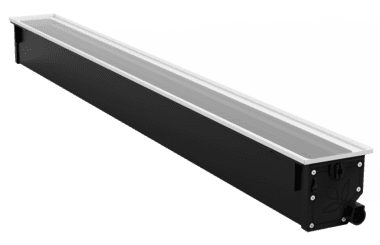

A high output linear inground that combines technology and performance in a stylish linear form factor featuring a bezel-less edge to edge glass slab cover with a sealed ± 15° tilt adjustment. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. Available in cool and warm white light engines, the luminaire can be conrolled via DALI or 0-10V. The LS3152 is available in 1-4 foot lengths and multiple luminaires can be connected end-to-end, allowing for long continuous runs.
Features
Lumen Output 6,020 lm
Power Consumption 18 W/ft
Typical Lifetime (TM21 Reported) > 60,000 hours (B10, L90, TM21 Reported)
Typical Lifetime (TM21 Projected) 179,506 hours (B10, L90, TM21 Projected)
Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 60 Hz
Earth Leakage 0.6 mA @ 220 V
Control Protocol DALI, 0-10 V, Non-Dimmable
IP Rating IP66 / IP67 (IP68 Tested)
IK Rating IK9
Compliance
Color Options
Data Sheet
Color Options
Data Sheet
Specifications
Accessories
| Wiring | |
| LS6402C | Leader Cable, Line Voltage, 4-Core |
| LS6402C-2.5 | Leader Cable, Line Voltage, 4-Core 2.5 mm² |
| LS6404C | Jumper Cable, Line Voltage, 4-Core |
| LS6404C-2.5 | Jumper Cable, Line Voltage, 4-Core 2.5 mm² |
