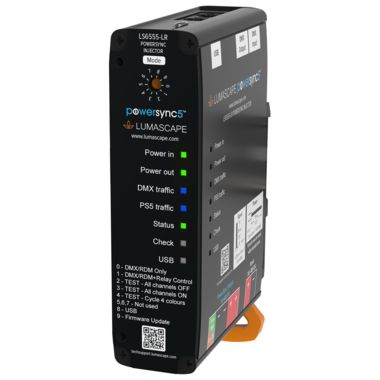

PowerSync™ 5 LV Data Injector Generation 2 - LS6555

Compatible with Faisca F3 (LS9230) Only

Product Overview

Translates DMX512 / RDM into PowerSync 5, a robust digital format suitable for controlling up to 75 compatible luminaires, on a single power/data cable.

Supplied complete with Din Rail mounting accessories, that can be installed on the edge or the back of the controller for simple installation and maintenance. The PowerSync Data Injector includes several integrated test modes for simple installation and an easy troubleshooting method for large control systems. The inclusion of an internal DMX controlled contactor (relay), allows luminaire circuits to be switched on and off remotely through the show control system with no additional hardware. Multiple passive and intelligent protections have been included to make the controllers more forgiving of the challenges of site installation, and provide a highly robust and reliable system designed for real world applications.


Unit Power Consumption < 5W Input/Output Voltage Low Voltage 30 to 48 Vdc Connected Current 16 A / 12.5 A Maximum Dimming Options DMX512/RDM IP Rating IP30 Compliance UL - USA & Canada CE UKCA RCM FCC Data Sheet

Product Configurator

Customise PowerSync™ 5 LV Data Injector Generation 2 below



DMX / RDM and 0-10V Input (2D)

DMX / RDM and 0-10V Input (2D)

For controlling PowerSync™ luminaires.
