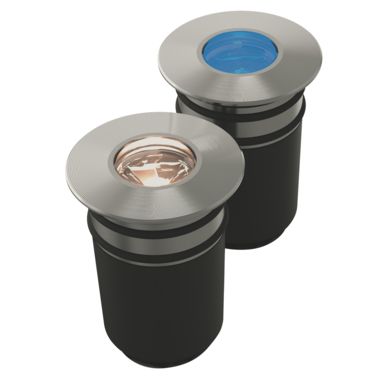

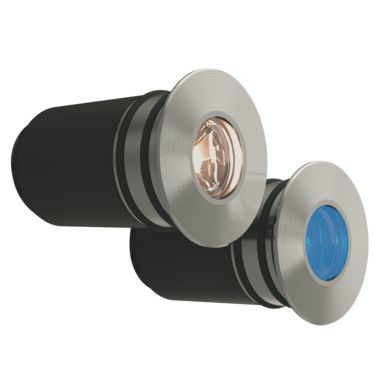

Vedita LED VE1 - LS9401LED

A compact and versatile low-voltage, inground luminaire with pre-installation sleeve

Product Overview

The Inground LS9401LED is very versatile: when high output is required, it can be deployed in its full output 2W configuration; or if a dot of light is required, it can be set as low as 0.2W (either by the factory or in the field). Alternatively, the luminaire can be dynamically dimmed via Lumascape d5 driver technology. This luminaire is supplied with an installation sleeve, which is ideal for landscape installations. Constructed in part from 316 marine grade stainless steel, this luminaire also comes standard with Lumascape proprietary ElectroPolishPlus™ surface treatment.

Features

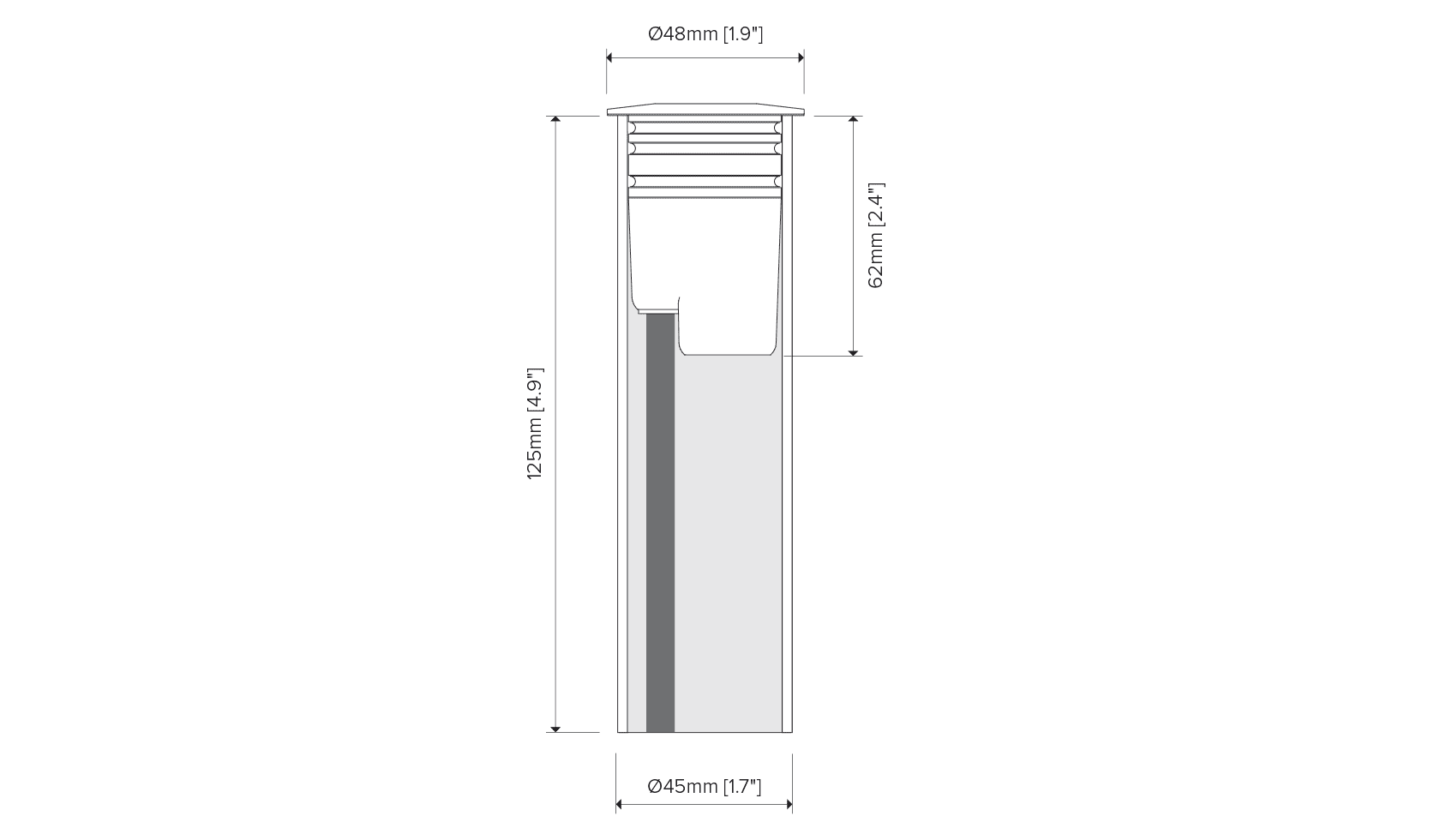

Lumen Output 180lm Power Consumption 2.8W Typical Lifetime > 60,000 hours @ 50ºC ambient (B10, L70, TM21 Reported) Control Protocol PWM (0-10V, DMX, DALI) Diameter 5cm (2") Static Load Rating 450kg (992lb) IP Rating IP68 IK Rating IK10 Compliance ETL - USA & Canada CE Color Options Warm White Cool White Blue (470 nm) Data Sheet

Specifications

Product Configurator

Customise Vedita LED VE1 below

Light Engine

Required

1W (1)

2W (2)

Light Source

Required

2,700K, 80 CRI (D7)

2,700K, 80 CRI (D7)

Warm White (80 CRI, 3 SDCM)

3,000K, 80 CRI (H6)

3,000K, 80 CRI (H6)

Warm White (80 CRI, 3 SDCM)

4,000K, 80 CRI (W4)

4,000K, 80 CRI (W4)

Cool White (80 CRI, 3 SDCM)

470nm (B4)

470nm (B4)

Blue

Finish

Required

316 Stainless Steel (SS)

316 Stainless Steel (SS)

Machined finished with ElectroPolishPlus™ surface treatment

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Narrow (NR)

Narrow (NR)

14°

Medium (ME)

Medium (ME)

20°

Wide (WD)

Wide (WD)

30°

Linear (LN)

Linear (LN)

10° x 40°

Marker (FL)

Marker (FL)

Diffused lens

Input Voltage

Required

24V DC - Dimmable (27)

24V DC - Dimmable (27)

PWM Dimmable Driver, 24V DC

Tilt

Required

Standard (U)

Vertical, 0° tilt

Wall Wash (W)

Not applicable with Flood (FL) beam

Cable Length

Required

2m (02)

4 x 0.5mm2 H05RN-F flexible rubber cable

8m (08)

4 x 0.5mm2 H05RN-F flexible rubber cable

15m (15)

4 x 0.5mm2 H05RN-F flexible rubber cable

20m (20)

4 x 0.5mm2 H05RN-F flexible rubber cable

25m (25)

4 x 0.5mm2 H05RN-F flexible rubber cable
