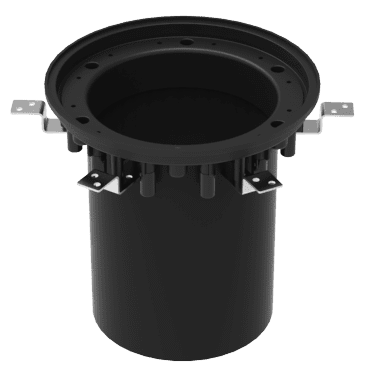

Pre-Installation Kit - LS6052-K

Pre-Installation Kit for LS3060 and LS3062
Configure this product Specifications

Product Overview

Pre-Installation Kit for LS3060 and LS3062.

  • LS6052-K-84   Hard wired installations
  • LS6052-K-87   Flexible cable, single entry, for connectorised installations - non dimming

Suitable for use with
LS3060 Erden E6 In-ground
LS3062 Erden E6 Foundation In-ground

Specifications

Product Configurator

LS6052-K _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Pre-Installation Kit below

Connection Type

Must match connection type of luminaire.

Required

MicroAntiLeach Cable (84)

MicroAntiLeach Cable (84)

For connections to the branch circuit via junction box (by others) or other approved method.

Connectorised (77)

Connectorised (77)

Flexible cable for connectorised installations, includes MicroAntileach™ cable. This method allows for a tool free final connection to the luminaire. Suitable for dimmable luminaires.

Input Voltage

Required

220-240 Vac, 50/60 Hz (01)

220-240 Vac, 50/60 Hz (01)

Line Voltage

Control

Required

PowerSync™ (PS)

PowerSync™ (PS)

Required for all dimming and color-changing applications. LS6540 (mains voltage) or LS6550 (low voltage) data injector required (order separately).
