Luminaire Control
PowerSync™ Data Injector Generation 2
Product Overview

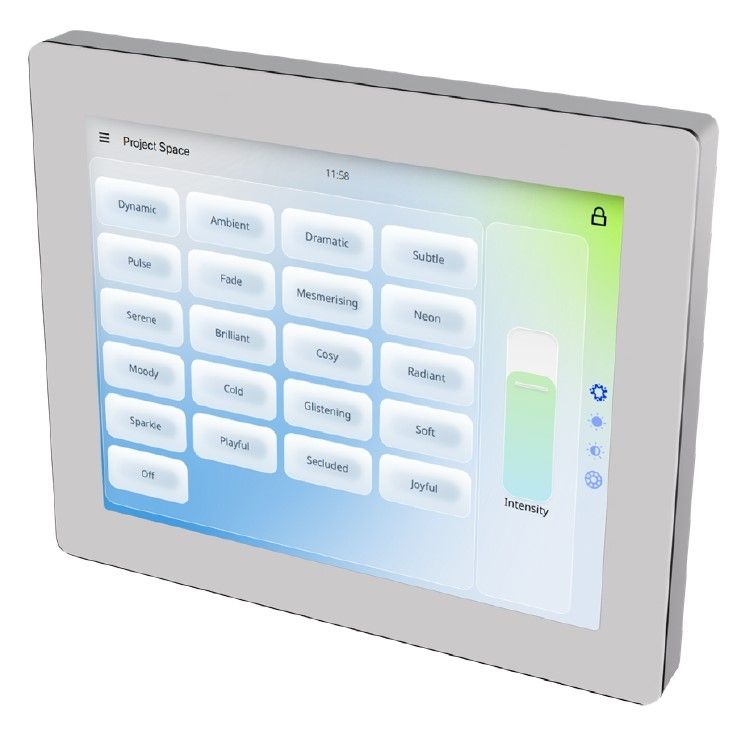

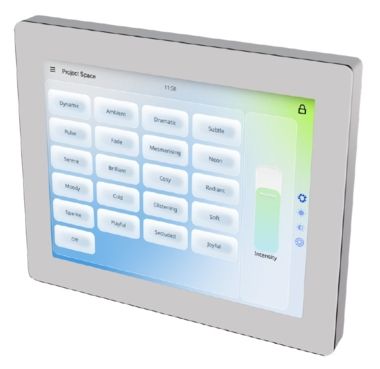

XPT 8" Power-over-Ethernet Touchscreen
A stunningly elegant wall station with a seamless, uninterrupted glass front plate, providing a beautiful interface if your project requires user interaction. The 8” touchscreen receives automatically generated pages via Expert Control, based on programming in Expert software. Easily control your lighting by activating scenes and adjusting intensity for each Space.
With single cable installation, Expert Touch 8 is a Power-over-Ethernet device. Included is a Universal Mounting Plate which is compatible with world-wide back boxes and boasts a secure and ingenious fitting
mechanism.
Features
Power PoE (IEEE802.3af, Class 0), 10W typical
Data Storage Removable MicroSD Card (supplied)
Temperature 0°C to 50°C (32°F to 122°F)
Humidity 10-90% relative, non-condensing
Ingress IP40
Physical Wall mounted, partly recessed with a custom mounting plate

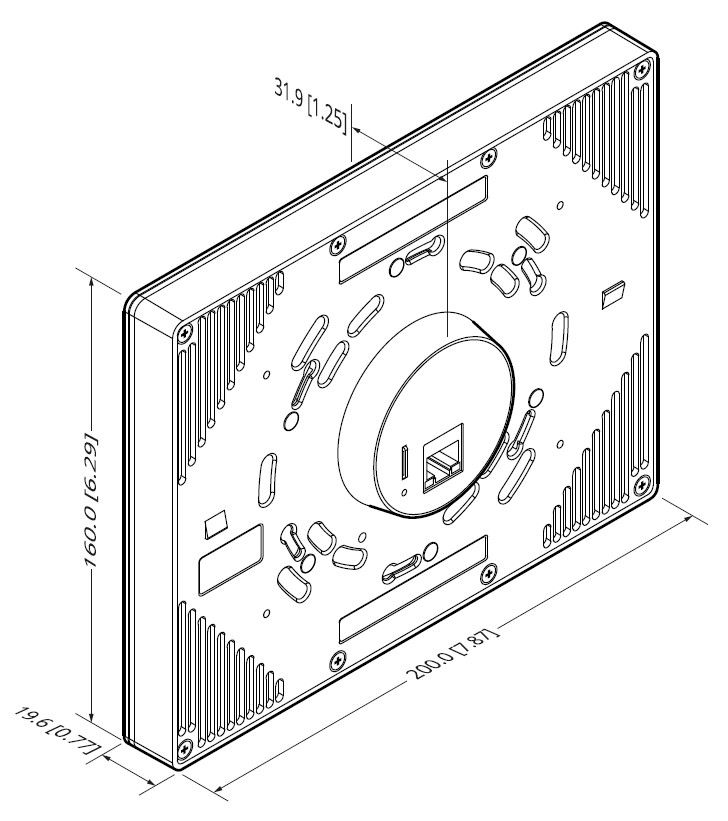

Dimensions 20 x 16 x 3.2 cm (7.9 x 6.3 x 1.3 in)
Weight 0.7 kg (1.6 lbs)
Compliance
