Piazza LED PI2 - G522-LED

A compact and versatile bi-directional wall grazer

Product Overview

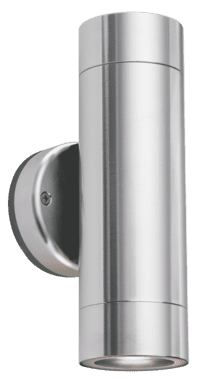

A compact, fixed position, direct/indirect accent used for grazing walls or other accent illumination tasks. The luminaire is constructed of 316 marine grade stainless steel with Lumascape’s proprietary ElectroPolishPlus™ surface treatment, to provide a long life even in coastal environments. Ideal for use in modern architectural designs, and features the Lumascape d5 driver technology for advanced dimming and control options.

Features

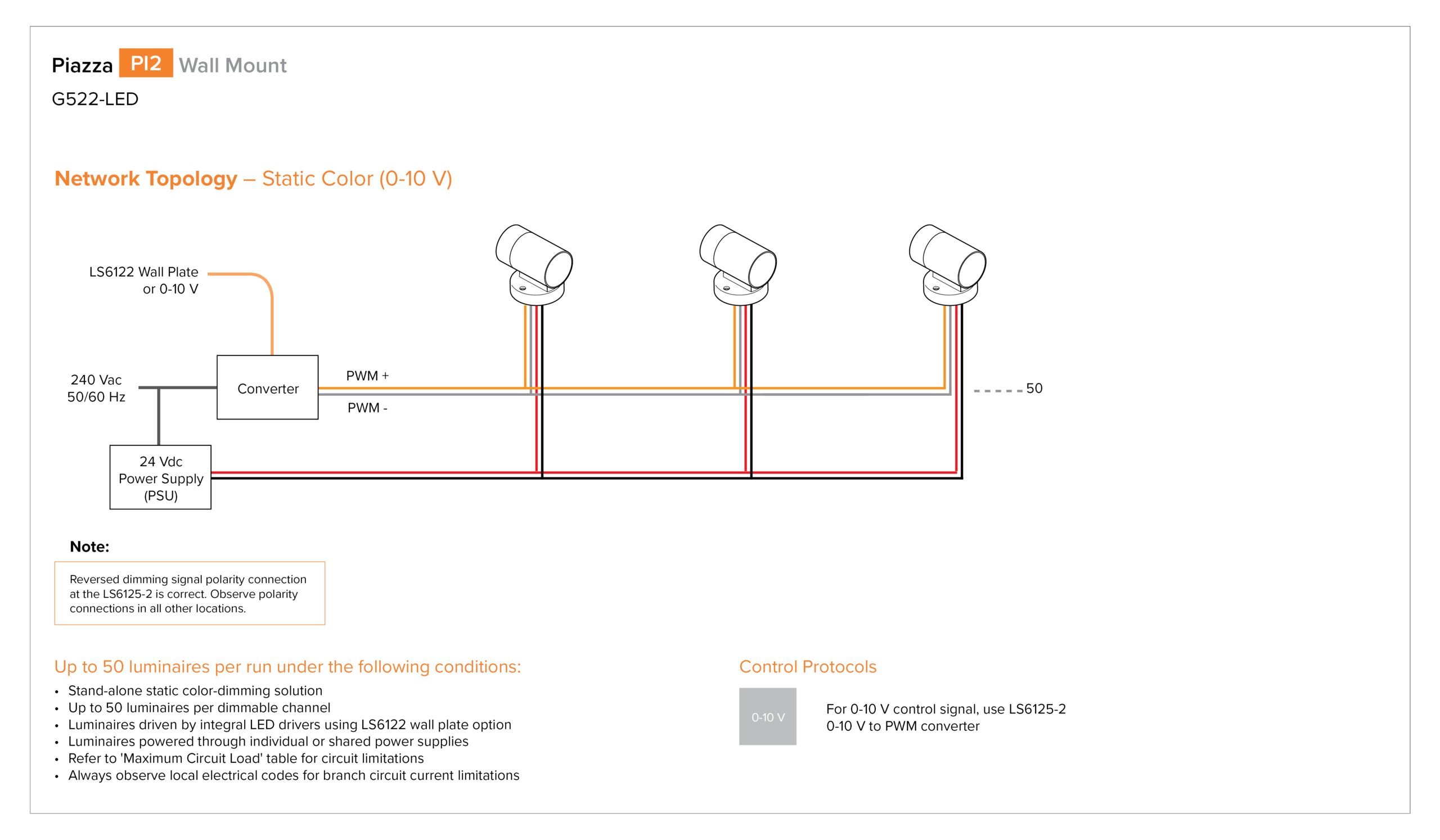

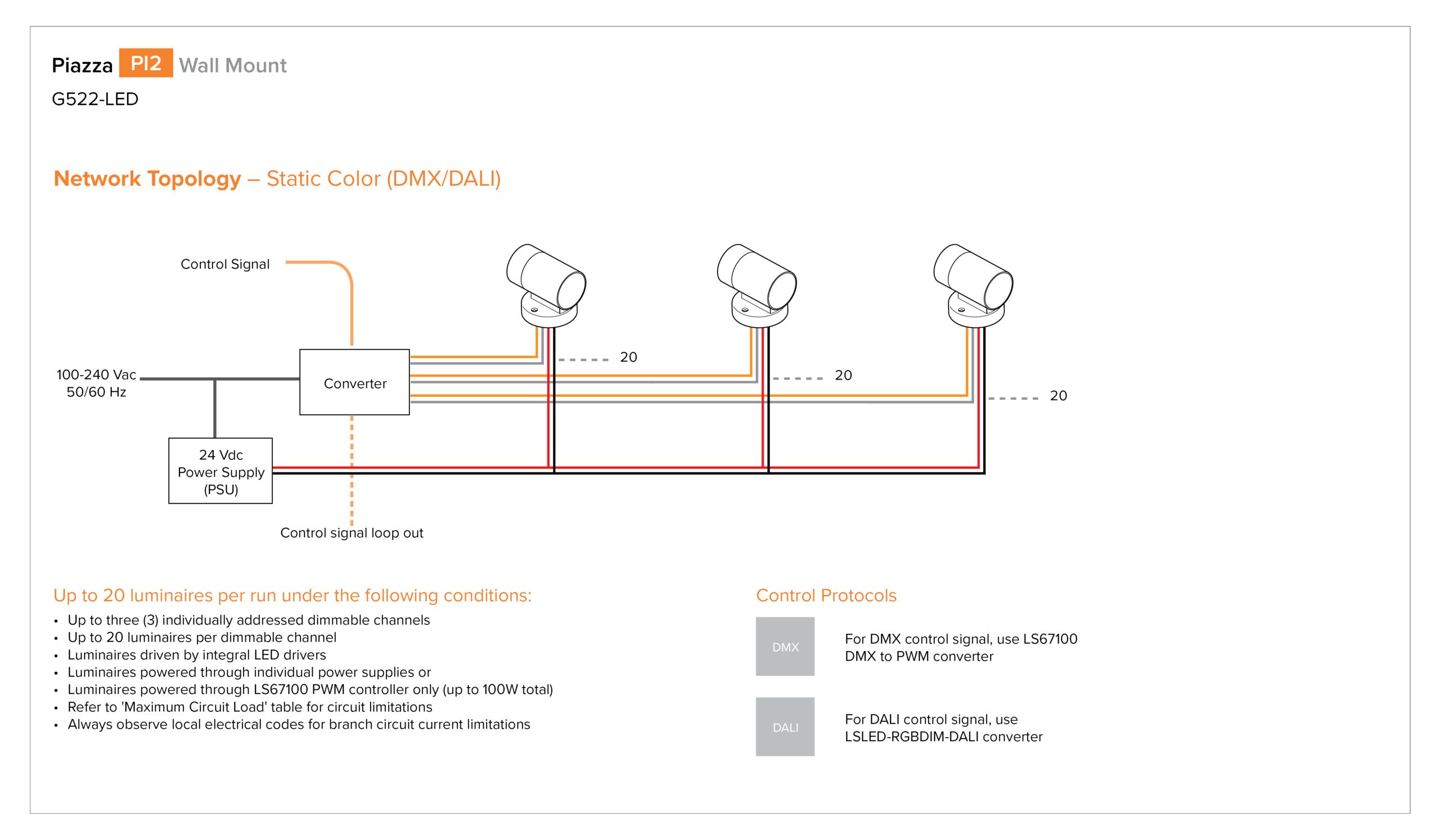

Lumen Output 2 x 322lm LED Power 2 x 3 W Power Consumption 2 x 3.6 W Input Voltage 24 Vdc, 110-240 Vac 50/60 Hz Control Protocol PWM (0-10V, DMX) IP Rating IP65 Compliance CE RCM Color Options Warm White Cool White Blue (470 nm) Data Sheet

Specifications

Product Configurator

Customise Piazza LED PI2 below

Light Engine

Required

2 x 3W (6)

Light Source

Required

2,700K, 80 CRI (D7)

2,700K, 80 CRI (D7)

Warm White (80 CRI, 3 SDCM)

3,000K, 80 CRI (H6)

3,000K, 80 CRI (H6)

Warm White (80 CRI, 3 SDCM)

4,000K, 80 CRI (W4)

4,000K, 80 CRI (W4)

Cool White (80 CRI, 3 SDCM)

470nm (B4)

470nm (B4)

Blue

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Narrow (NR)

Narrow (NR)

14°

Narrow Medium (NM)

Narrow Medium (NM)

25°

Medium (ME)

Medium (ME)

30°

Wide (WD)

Wide (WD)

40º

Input Voltage

GardenQ

Required

24V DC - Dimmable (D)

24V DC - Dimmable (D)

PWM Dimmable Driver, 24V DC

110-240V, 50/60Hz (M)

110-240V, 50/60Hz (M)

Mains Voltage

Finish

Required

316 Stainless Steel (SS)

316 Stainless Steel (SS)

Machined finished with ElectroPolishPlus™ surface treatment
