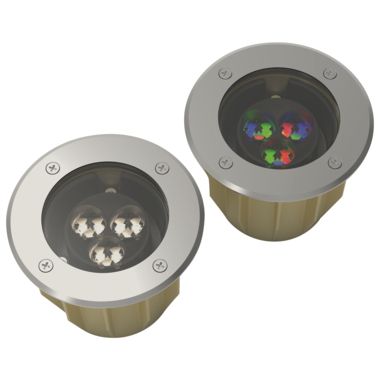

Evoca LED EV7 - LS793LED

A compact, shallow-depth inground luminaire ideal for applications requiring a low-profile appearance

Product Overview

A compact, shallow-depth inground luminaire for applications requiring a very compact form factor, and features a 3W, 6W or 9W LED module with output similar to a 75W MR16.  The compact size allows the luminaire to be used without appearing to dominate the architecture or landscape.  For better control of light, a factory set tilt option is available, as well as dimming for single colour via Lumascape's d5 driver technology.

Features

Lumen Output 547 lm LED Power 3W, 6W, 9W Power Consumption 7.2 W Typical Lifetime > 60,000 hours @ 50ºC ambient (B10, L70, TM21 Reported) Control Protocol PWM (0-10V, DMX, DALI) Diameter 112mm (4.4") Static Load Rating 750kg (1,650lb) IP Rating IP68 IK Rating IK7 Compliance ETL - USA & Canada CE Color Options Warm White Cool White Blue (470 nm) Data Sheet

Specifications

Product Configurator

Customise Evoca LED EV7 below

Light Engine

Required

3W (3)

6W (6)

9W (9)

Light Source

Required

3,000K, 80 CRI (H6)

3,000K, 80 CRI (H6)

Warm White (80 CRI, 3 SDCM)

4,000K, 80 CRI (W4)

4,000K, 80 CRI (W4)

Cool White (80 CRI, 3 SDCM)

470nm (B4)

470nm (B4)

Blue

RGB (M4)

RGB (M4)

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Narrow (NR)

Narrow (NR)

14°

Narrow Medium (NM)

Narrow Medium (NM)

20°

Medium (ME)

Medium (ME)

25°

Linear Horizontal (LH)

Linear Horizontal (LH)

40° x 20°

Linear Vertical (LV)

Linear Vertical (LV)

20° x 40°

Cable Entry

Required

Side (N)

Side (N)

Bottom (Q)

Bottom (Q)

Input Voltage

Required

24V DC (07)

24V DC (07)

Low Voltage

24V DC - Dimmable (27)

24V DC - Dimmable (27)

PWM Dimmable Driver, 24V DC

Tilt

Required

Tilt 0 ̊ (U)

Tilt 0 ̊ (U)

Tilt 15° (W)

Tilt 15° (W)

Accessories

Pre-Installation Options

Pre-installation Kit (LS6137)

Pre-installation Kit (LS6137)

Pre-installation blockout for LS793 series luminaire
