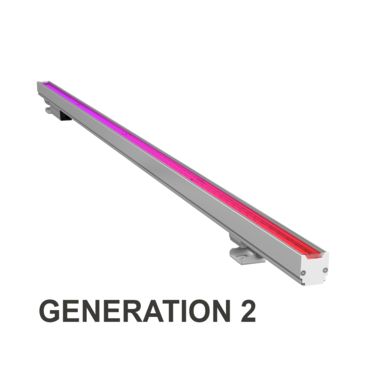

Linealux L1 Generation 2 - LS9010

An architectural grade luminaire that combines technology and performance in a stylish low profile linear form factor.

Product Overview

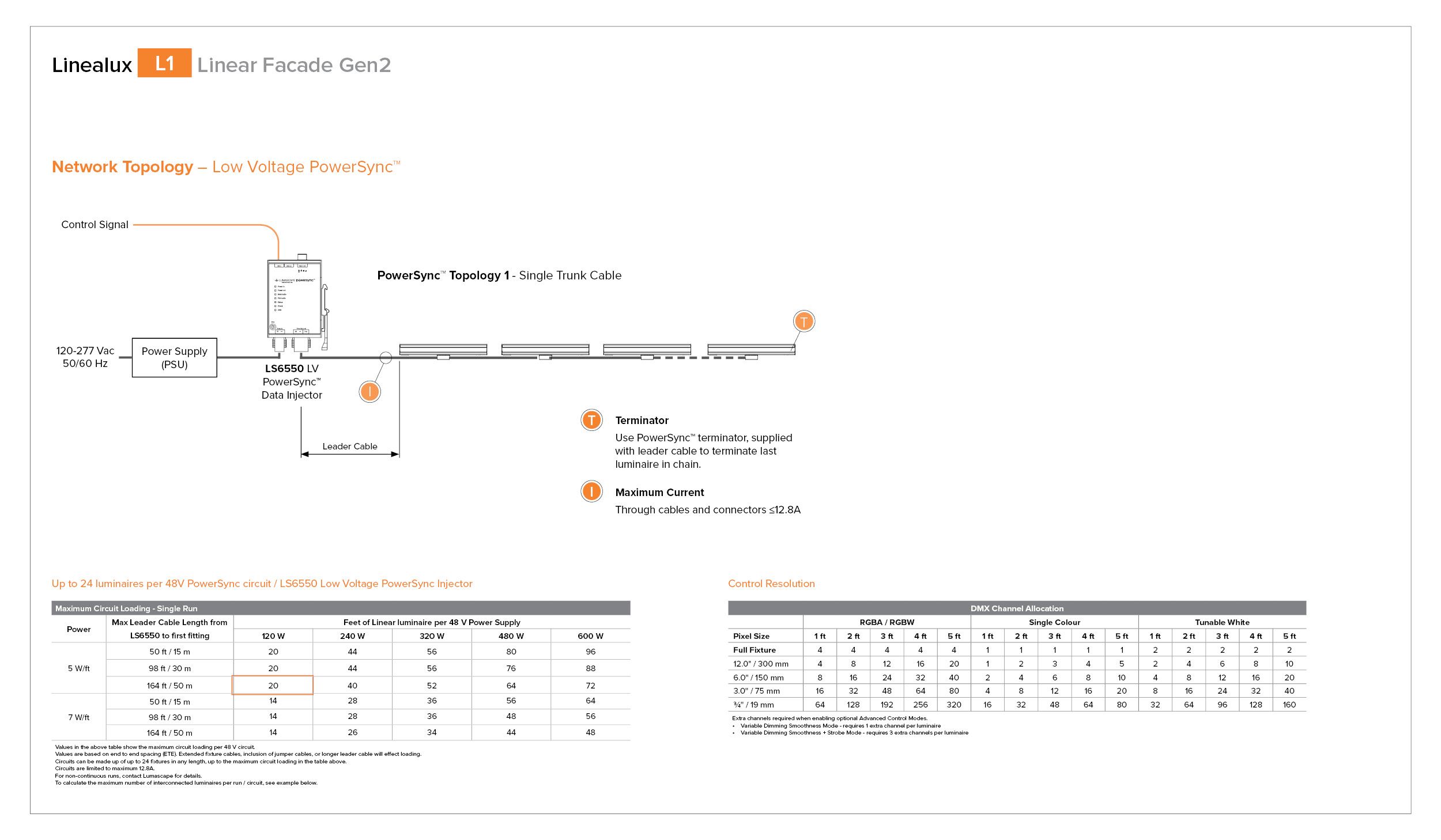

At only 1.1" (28 mm) wide, the Generation 2, Linealux L1 mini grazer provides enormous creative lighting potential, in a very small package. Packed with features including EasyGlow™ visual comfort, CoolDrive™ thermal management and PowerSync™ communication technologies. PowerSync allows for highly granular digital control via DMX/RDM, with no additional wiring.

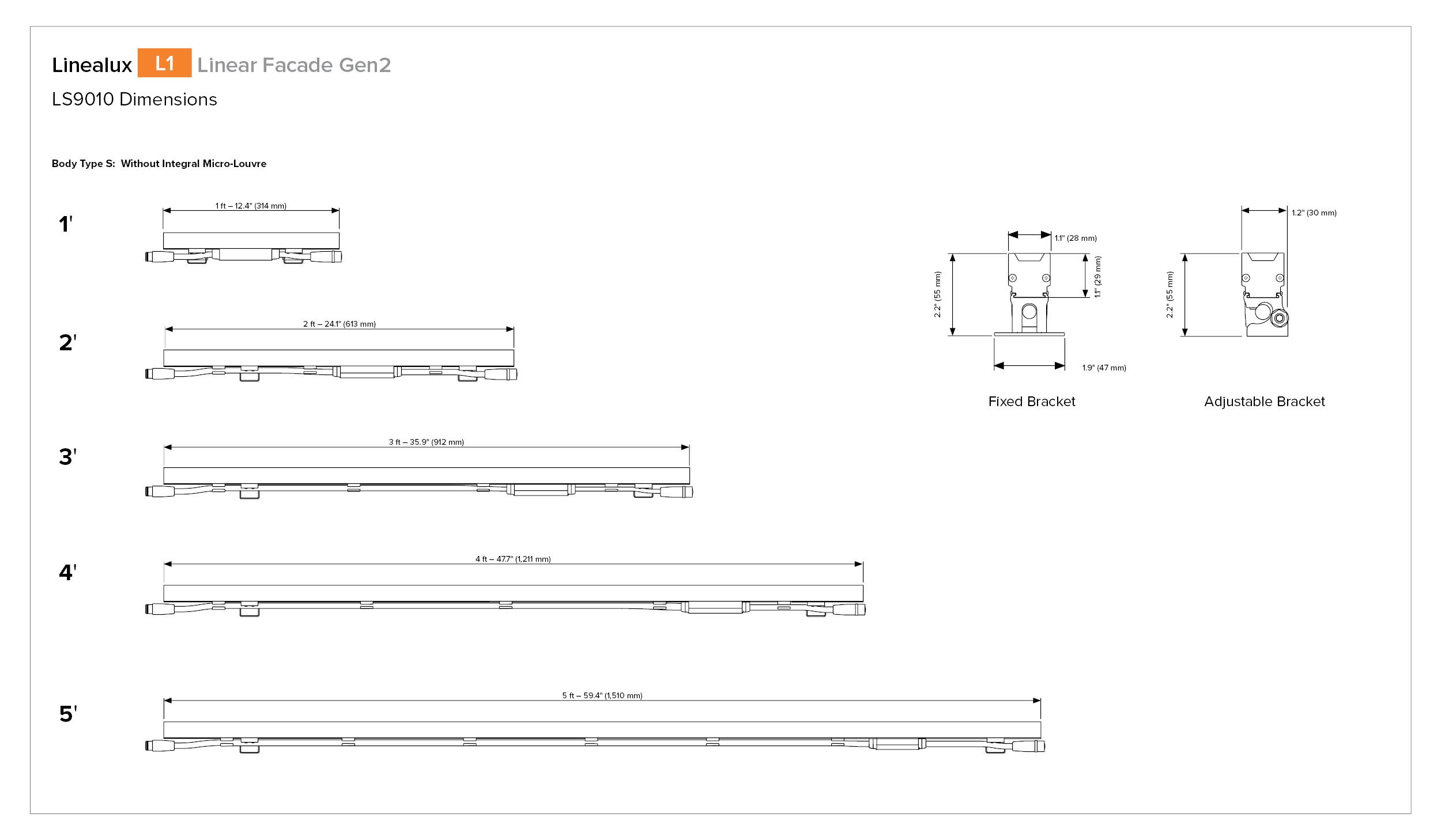

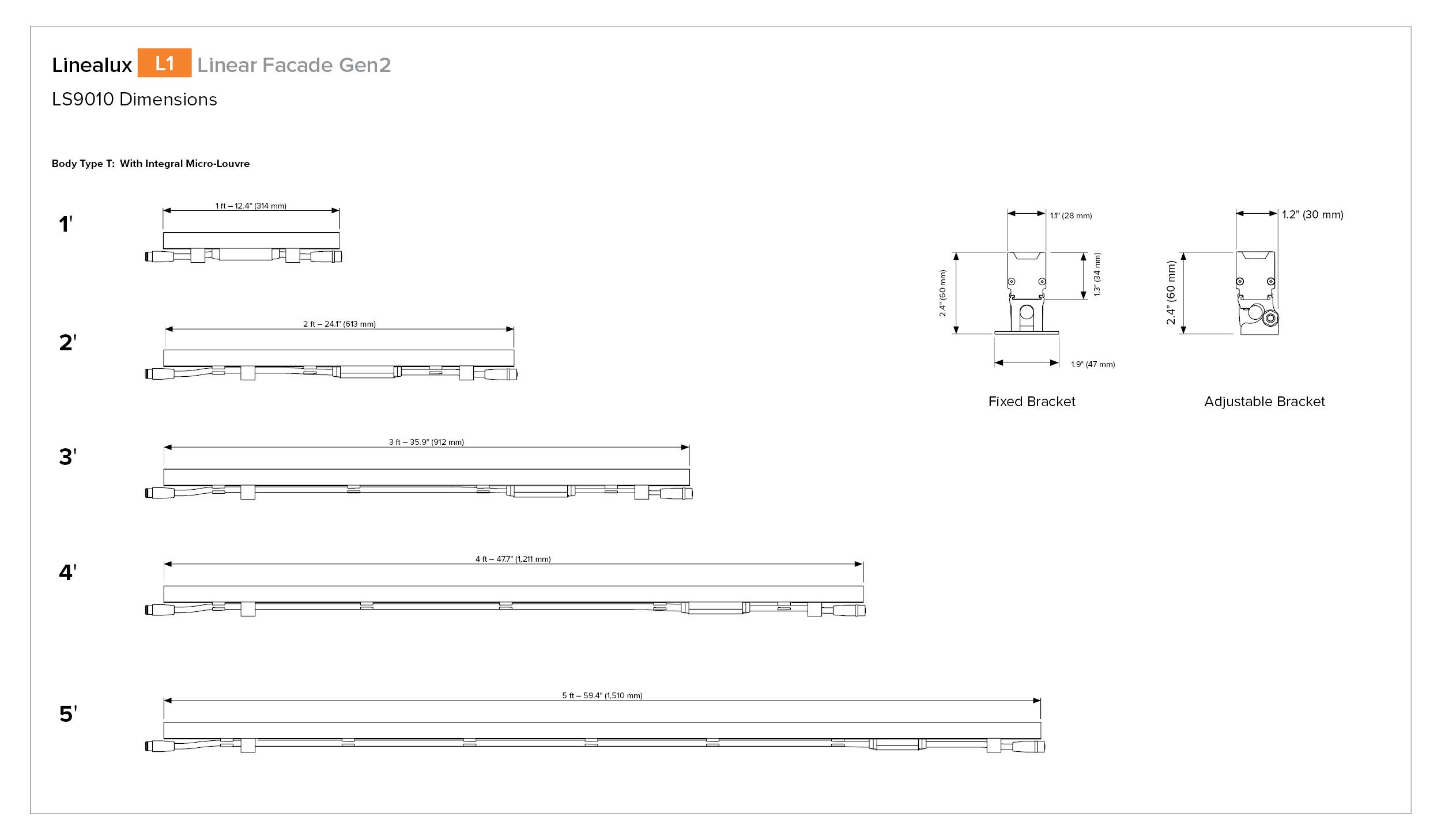

Unique and flexible designer optics allow wide end-to-end spacing while maintaining excellent uniformity and superb color-over-angle and blending consistency even at close grazing distances. Available in a range of standard lengths from 1 ft (300 mm) to 5 ft (1500 mm), the Linealux L1 Generation 2 provides excellent installation flexibility.

Using the Linealux L1 Generation 2 in your lighting project, imagination really is the only limit!

Features

Lumen Output 505 lm/ft LED Power 6 W/ft, 4 W/ft Power Consumption 7 W/ft, 5 W/ft Typical Lifetime (L70) > 60,000 hrs Input Voltage Low Voltage 30-48 Vdc Control Interface PowerSync™ Control Protocol DMX/RDM, Artnet, 0-10 V IP Rating IP66/IP67 (Passes IP68 Test) IK Rating IK6 Compliance ETL - USA & Canada CE RCM Color Options Warm White Cool White Royal Blue RGBA RGBW with Royal Blue Tunable White Red Green Data Sheet

Specifications

Accessories


Control
LS6550 PowerSync™ Data Injector, Low Voltage 30-48 Vdc, Generation 2
(Required for PS installations only)
LSLED40W-48V DC Power Supply, 48 V, 40 W
LSLED80W-48V DC Power Supply, 48 V, 80W
LSLED120W-48V DC Power Supply, 48 V, 120 W
LSLED240W-48V DC Power Supply, 48 V, 240 W
LSLED320W-48V DC Power Supply, 48 V, 320 W
LSLED480W-48V DC Power Supply, 48 V, 480 W
LSLED600W-48V DC Power Supply, 48 V, 600 W

Wiring
LS6426-PS Leader Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync
LS6427-PS Jumper Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync
LS6426-ND Leader Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync
LS6427-ND Jumper Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync
