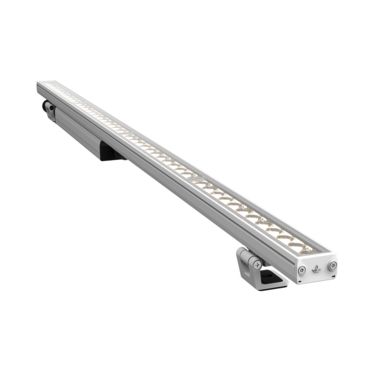

Linealux L3 Foundation - LS9032

A compact, high performance linear graze luminaire for architectural and infrastructure applications.

Product Overview

A compact, high-performance linear grazer luminaire combining technology and performance in a stylish design. Packed with features such as EasyGlow™ to provide visual comfort. High-performance optics provide superb color-over-angle even in the most challenging of grazing applications. Available with integrated Dali control or as non-dimmable.

Features

Lumen Output 4,810 lm Power Consumption 27 W | 35 W | 46 W Typical Lifetime (TM21 Reported) > 60,000 hours @ 40°C Ambient (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 179,506 hours @ 40°C Ambient (B10, L90, TM21 Projected) Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 60 Hz Earth Leakage 0.2 mA @ 120 Vac, 0.42 mA @ 240 Vac, 0.24 mA @ 277 Vac Control Protocols DALI 2 (International), 0-10 V (North America), Non-Dimmable IP Rating IP66 / IP67 (Passes IP68 Test) IK Rating IK6 construction; IK10 accessories available on request Vibration Resistance 3G Rating (ANSI C136.31) Compliance ETL - USA & Canada CE UKCA RCM Color Options Warm White Cool White Data Sheet

Specifications

Videos

Product Highlights | Linealux L3 Foundation
A brief introduction of the DALI lighting controls used in the Linealux L3 solution by Lumascape.
Webinar | Foundation Family
Watch the webinar introducing Lumascape's Foundation range of enhanced lighting controls

Accessories

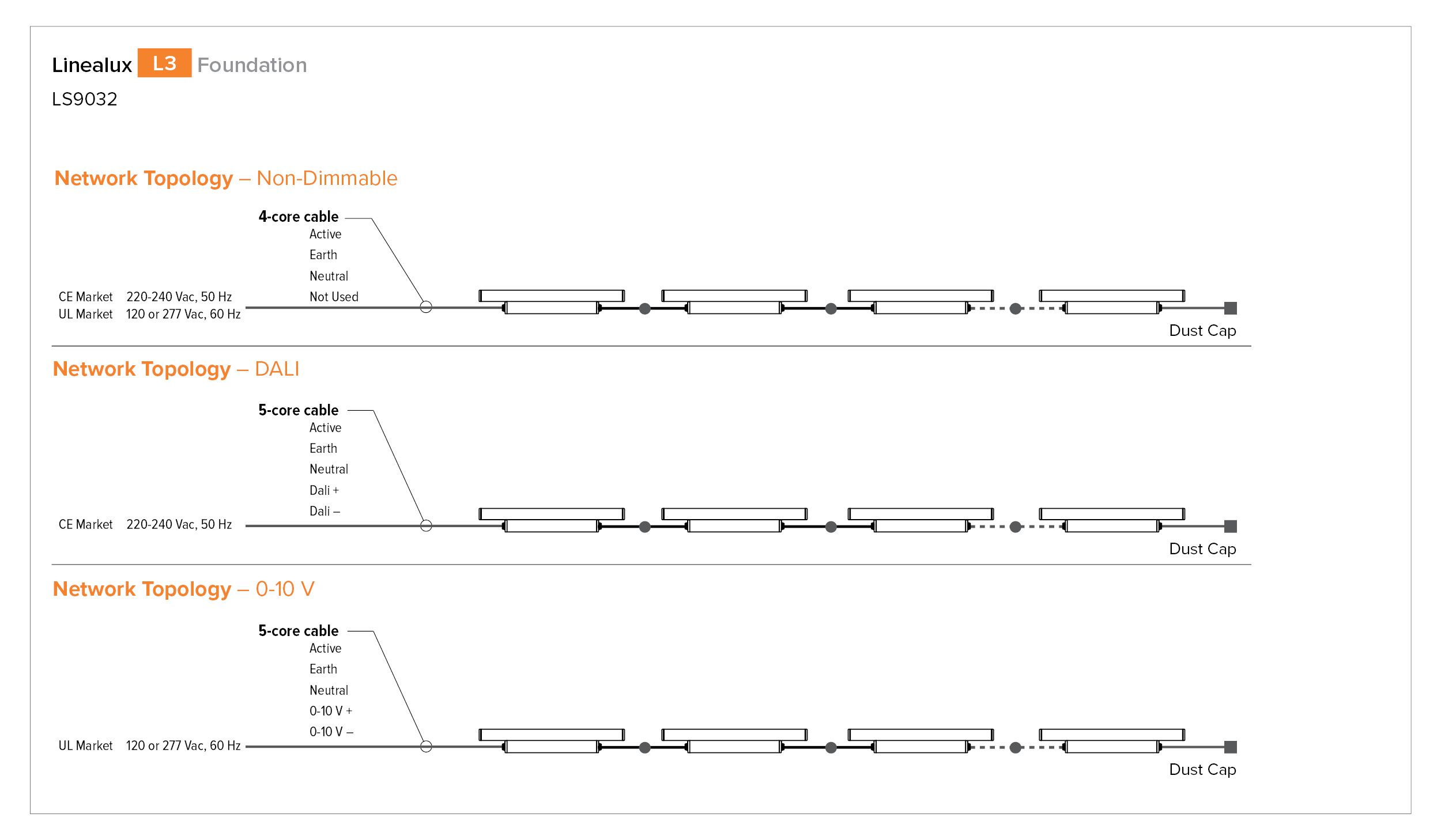

Wiring
LS6402C-ND Leader Cable, Line Voltage, 4-Core, Non-Dimmable
LS6404C-ND Jumper Cable, Line Voltage, 4-Core, Non-Dimmable
LS6402C-DL Leader Cable, Line Voltage, 5-Core, DALI Dimmable
LS6404C-DL Jumper Cable, Line Voltage, 5-Core, DALI Dimmable

Glare Control
LS6237 External / Slatted Louvre (Black)
LS6238 External Shield / Visor 1-sided
LS6239 External Shield / Visor 3-sided

Mounting
LS6221-06 6" (152 mm) Stand Off Bracket
LS6221-12 12" (305 mm) Stand Off Bracket
LS6221-18 18" (47 mm) Stand-Off Bracket
LS6221-24 24" (610 mm) Stand-Off Bracket
LS6221-48 48" (1,219 mm) Stand-Off Bracket

Product Configurator

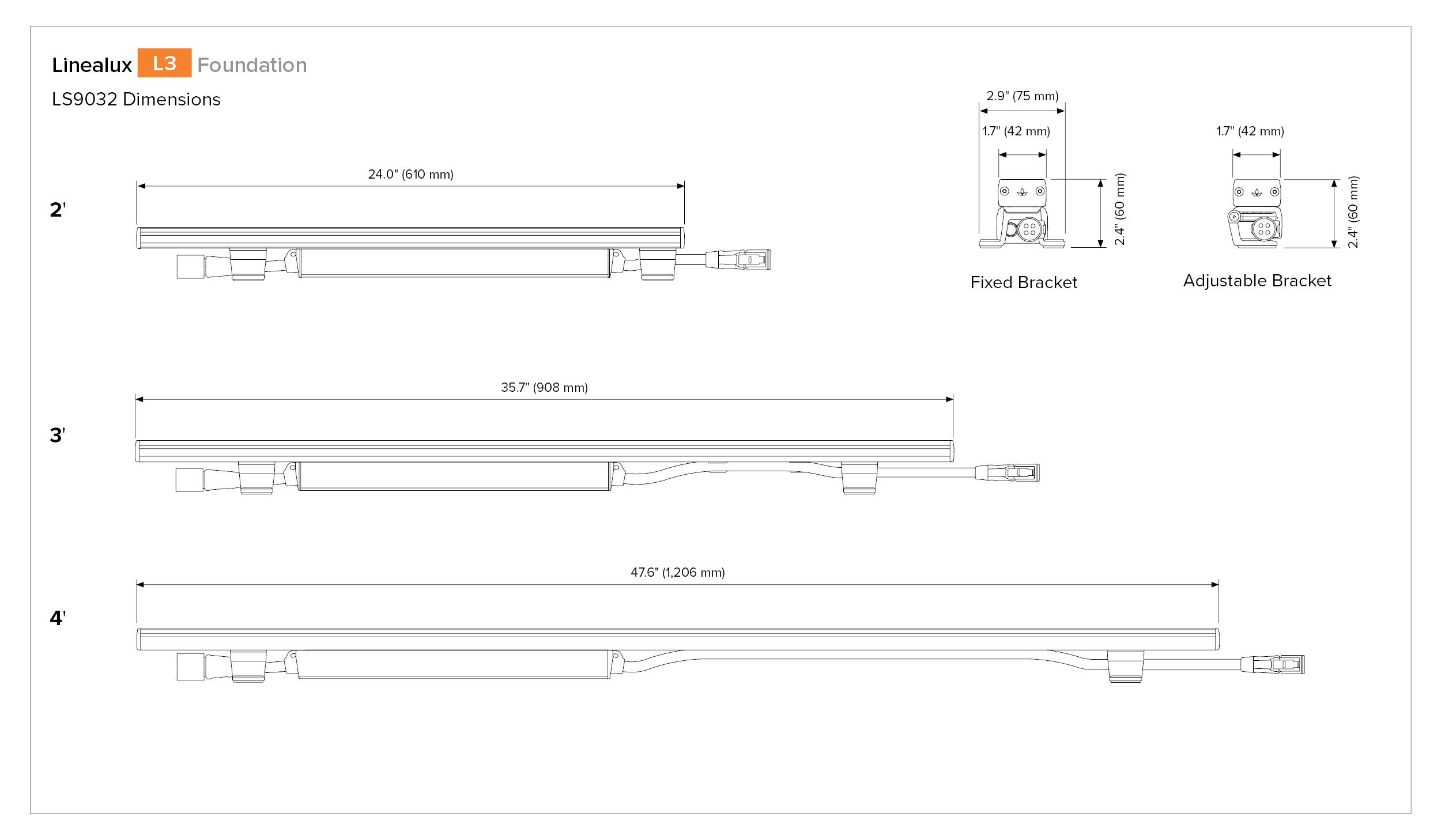

Length

Select the luminaire length
