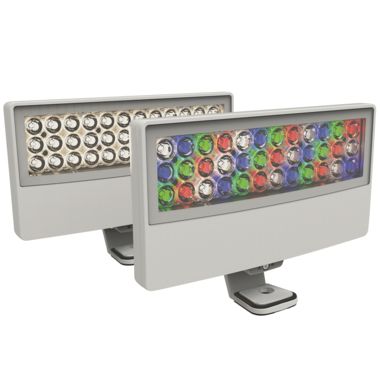

Quadralux Q4 - LS9140

A medium, architectural-grade spotlight, combining technology and performance in a modern form factor.

Product Overview

Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols. Unique and flexible mounting with glare control accessories enable installation in multiple orientations. Designer optics, provide superb color-over-angle consistency and color blending even at close distances. Available in white,
color-changing and tunable white light engines.

Features

Lumen Output 5,800 lm Power Consumption < 58 W Typical Lifetime (TM21 Reported) > 60,000 hours @ 50°C Ambient (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 179,506 hours @ 50°C Ambient (B10, L90, TM21 Projected) Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 6 Control Interface PowerSync Control Protocol DMX/RDM, Artnet, PWM, 0-10 V (sink or source) IP Rating IP66/IP67 (Passes IP68 Test) IK Rating IK8 Vibration Resistance 3G Rating (ANSI C136.31) Compliance ETL - USA & Canada CE UKCA RCM FCC Color Options Warm White Cool White RGBA RGBW with Royal Blue Tunable White Data Sheet

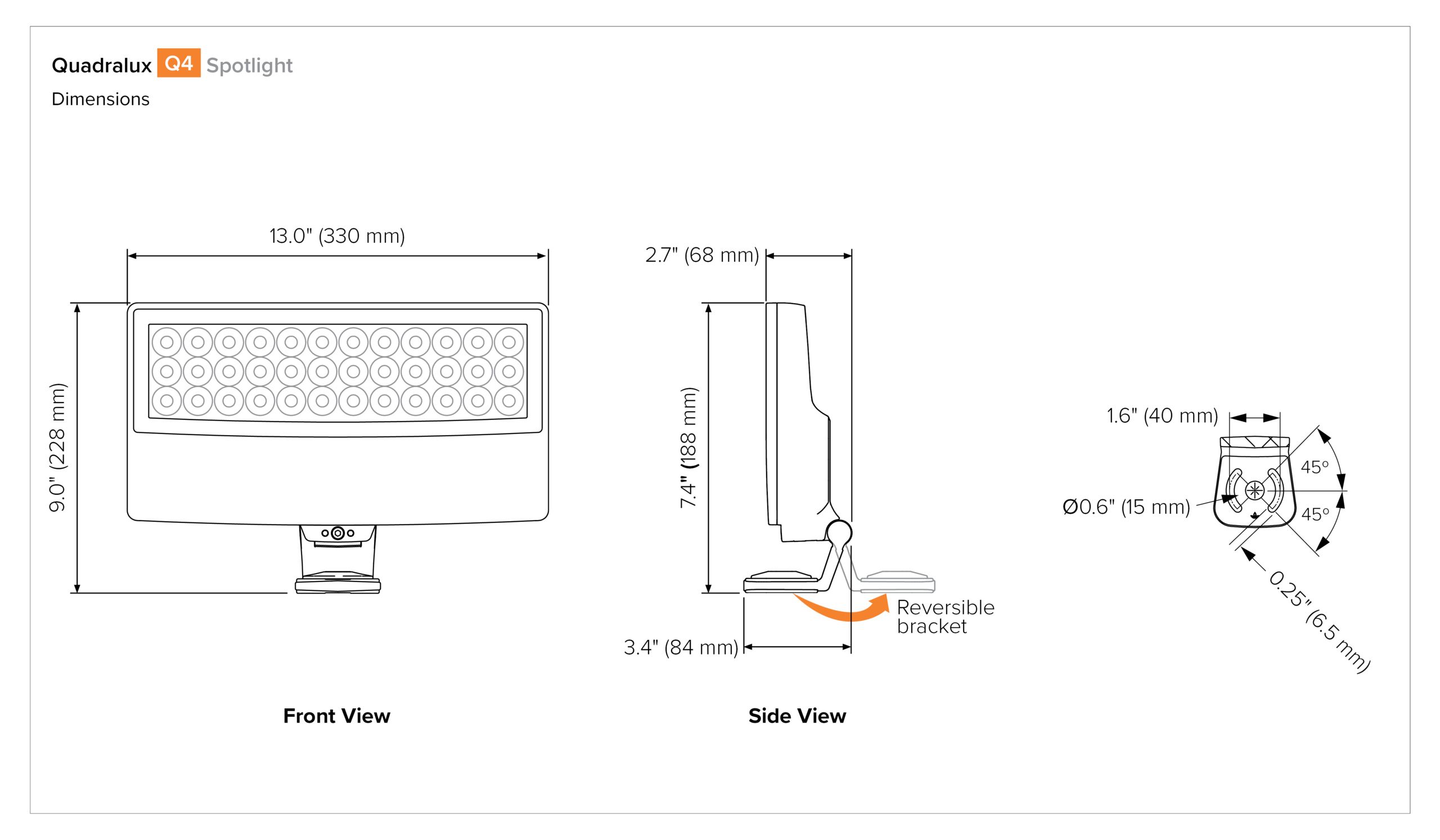

Specifications

Accessories


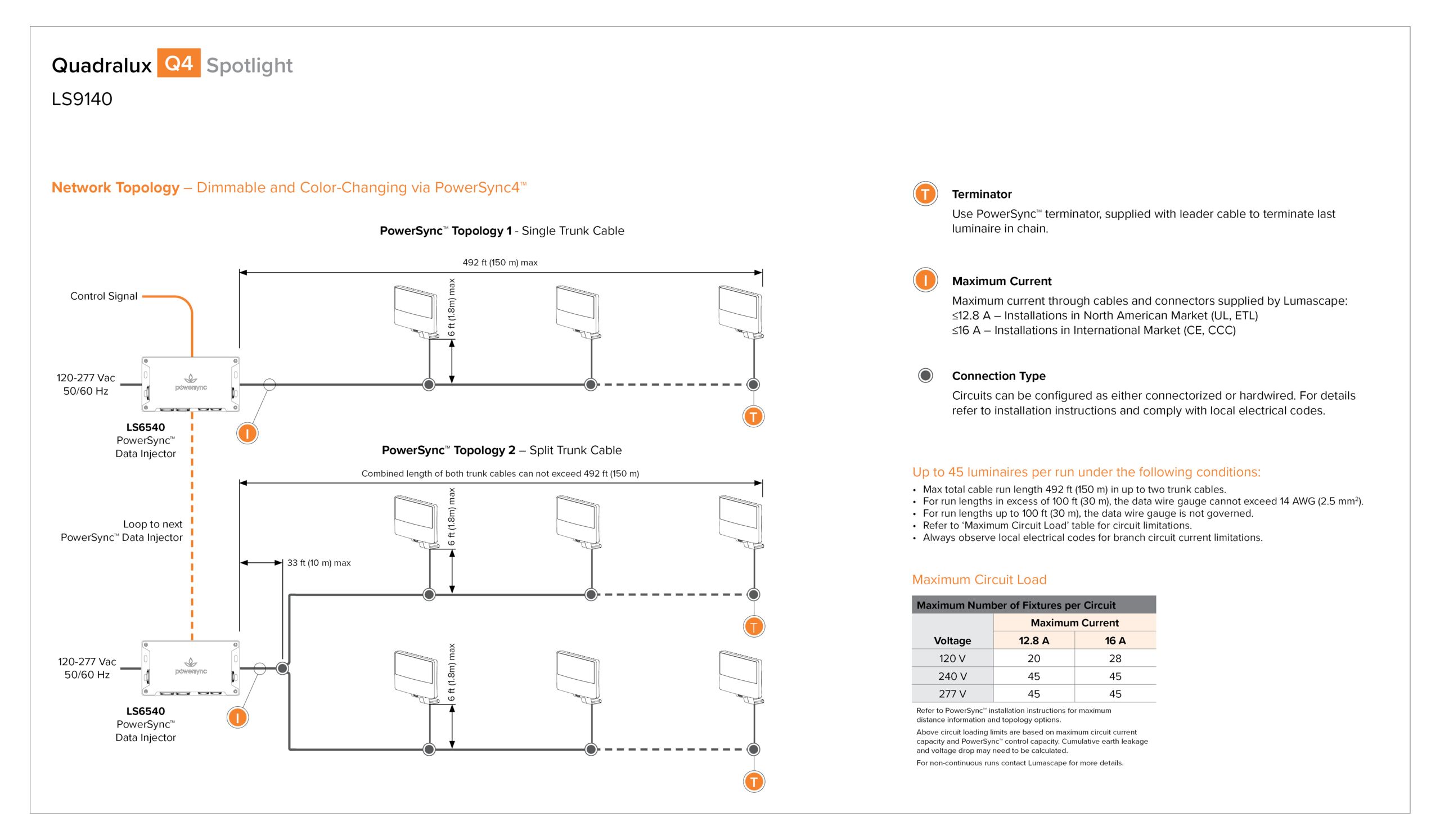

Control
LS6540 PowerSync Data Injector, Line Voltage, Generation 2

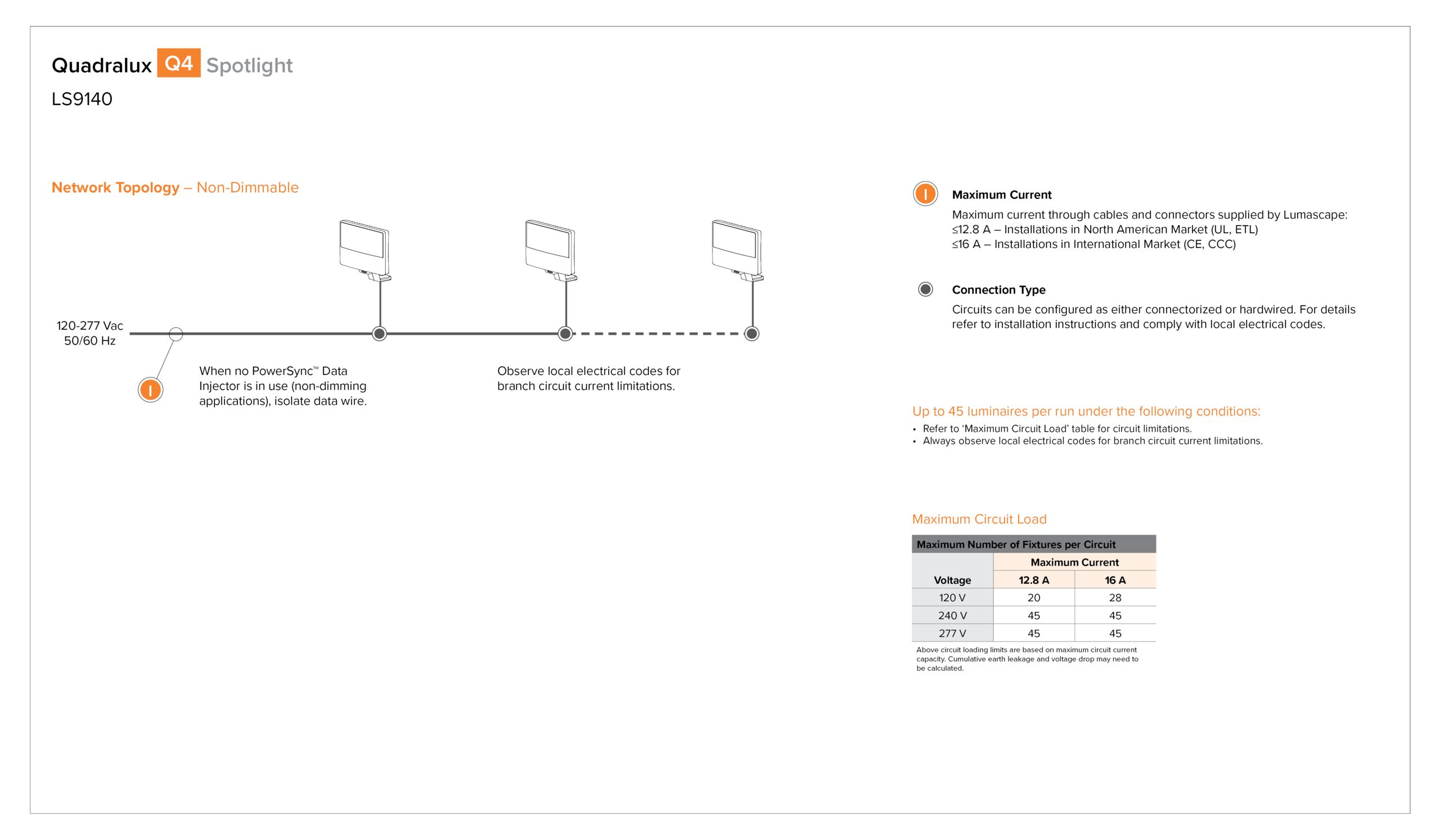

Wiring
LS6402C-PS Leader Cable, Line Voltage, 4-Core, PowerSync
LS6402C-2.5-PS Leader Cable, Line Voltage, 4-Core, PowerSync, 2.5 mm²
LS6404C-PS Jumper Cable, Line Voltage, 4-Core, PowerSync
LS6404C-2.5-PS Jumper Cable, Line Voltage, 4-Core, PowerSync, 2.5 mm²

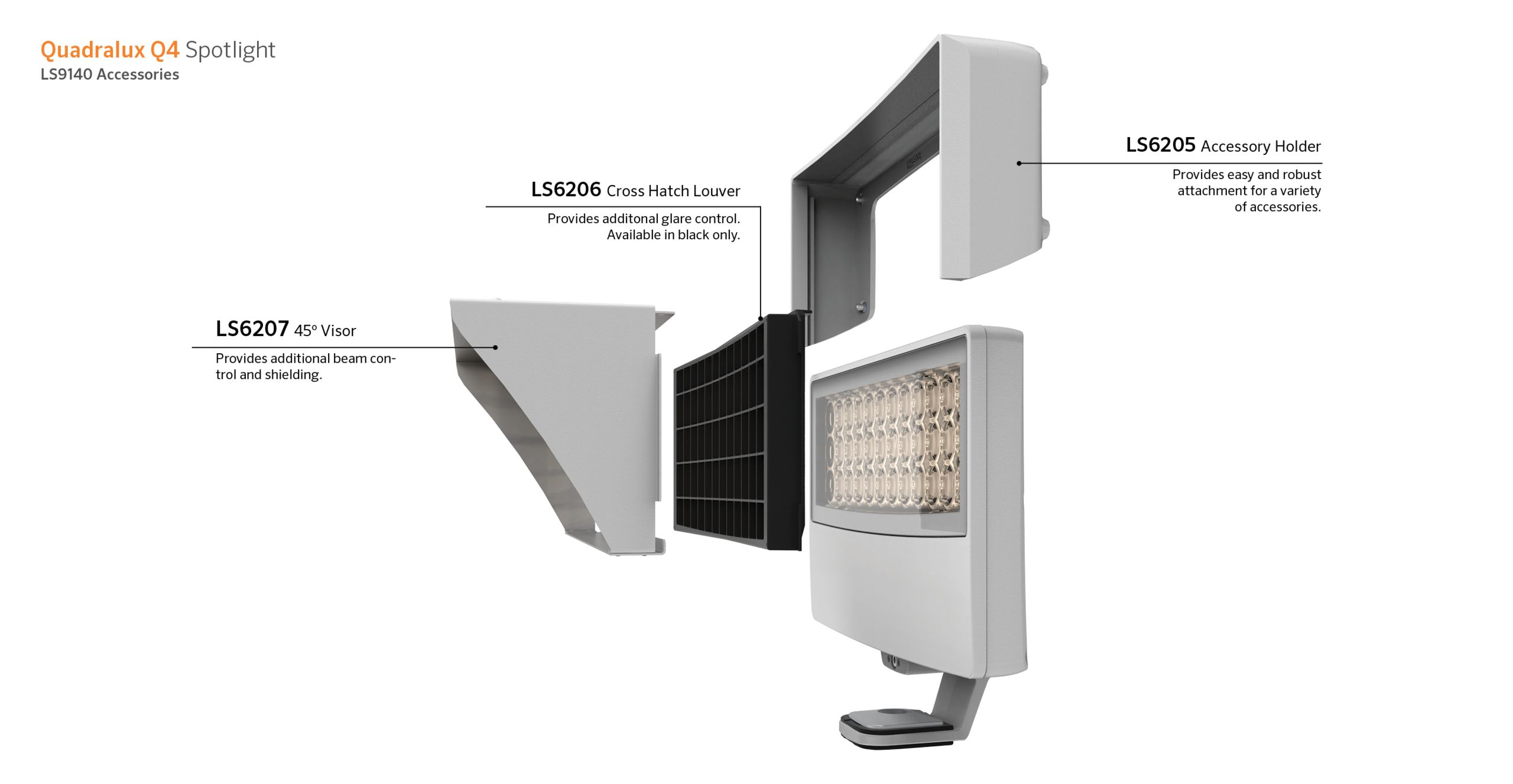

Glare Control
LS6206 Cross Hatch Louver
LS6207 45° Visor
LS6208 Custom Visor
LS6205 Accessory Holder

Mounting
LS6301 4.0"  (106 mm)  Junction Box Adaptor / Surface Mounting Kit
LS6302 3.0"  (76 mm)  Pole Clamp
LS6303 4.0"  (102 mm)  Pole Clamp
LS6304 4.5"  (114 mm)  Pole Clamp
LS6305 5.0"  (127 mm)  Pole Clamp
LS6306 2 3/8" x 4.0"  (60 mm x 104 mm)  Tenon Adaptor
LS6307 3.5" x 6.0"  (89 mm x 147 mm)  Tenon Adaptor
LS6221-06 6" (152 mm) Stand-Off Bracket
LS6221-12 12" (305 mm) Stand-Off Bracket
LS6221-18 18" (47 mm) Stand-Off Bracket

Product Configurator

Customise Quadralux Q4 below

Light Engine

Required

50 W (50D)

Light Source

Required

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

Static White (750)

5,000K (70 CRI, 3 SDCM)

Dynamic Colour (4CA)

Dynamic Colour (4CA)

RGBA

Dynamic Colour (4BW)

Dynamic Colour (4BW)

RGBW with Royal Blue

Tunable White (2WT)

Tunable White (2WT)

2,700 K - 6,500 K

Connection Type

Required

Single entry (84)

Single entry (84)

For connection to the supply circuit via flexible cable, up to 1.8m (6ft) in length. Single entry.

Single entry (77)

Single entry (77)

For connection to the supply circuit via Lumascape connection system with IP68 rated connectors. This method allows for tool free final connection to the luminaire.

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

Very Narrow (VN)

Narrow (NR)

Narrow (NR)

10°

Narrow Medium (NM)

Narrow Medium (NM)

15°

Medium (ME)

Medium (ME)

30°

Wide (WD)

Wide (WD)

45°

Wide Flood (WF)

Wide Flood (WF)

65°

Narrow Horizontal (NH)

Narrow Horizontal (NH)

10º x 40º

Linear Horizontal (LH)

Linear Horizontal (LH)

10º x 60º

Linear Vertical (LV)

Linear Vertical (LV)

60° x 10°

Narrow Vertical (NV)

Narrow Vertical (NV)

40° x 10°

Medium Horizontal (MH)

Medium Horizontal (MH)

20º x 40º

Medium Vertical (MV)

Medium Vertical (MV)

40° x 20°

Wide Horizontal (WH)

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

Wide Vertical (WV)

60° x 20°

Input Voltage

Required

220 to 240 Vac, 50 Hz (01)

220 to 240 Vac, 50 Hz (01)

Line Voltage

Control

Required

PowerSync™ (PS)

PowerSync™ (PS)

Required for all dimming and color-changing applications. LS6540 (mains voltage) or LS6550 (low voltage) data injector required (order separately).

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Cable Length

For custom cable lengths contact Lumascape. Cable cannot be field installed.

Required

6 ft (1.8 m) (006)

Accessories
