Quadralux Q8

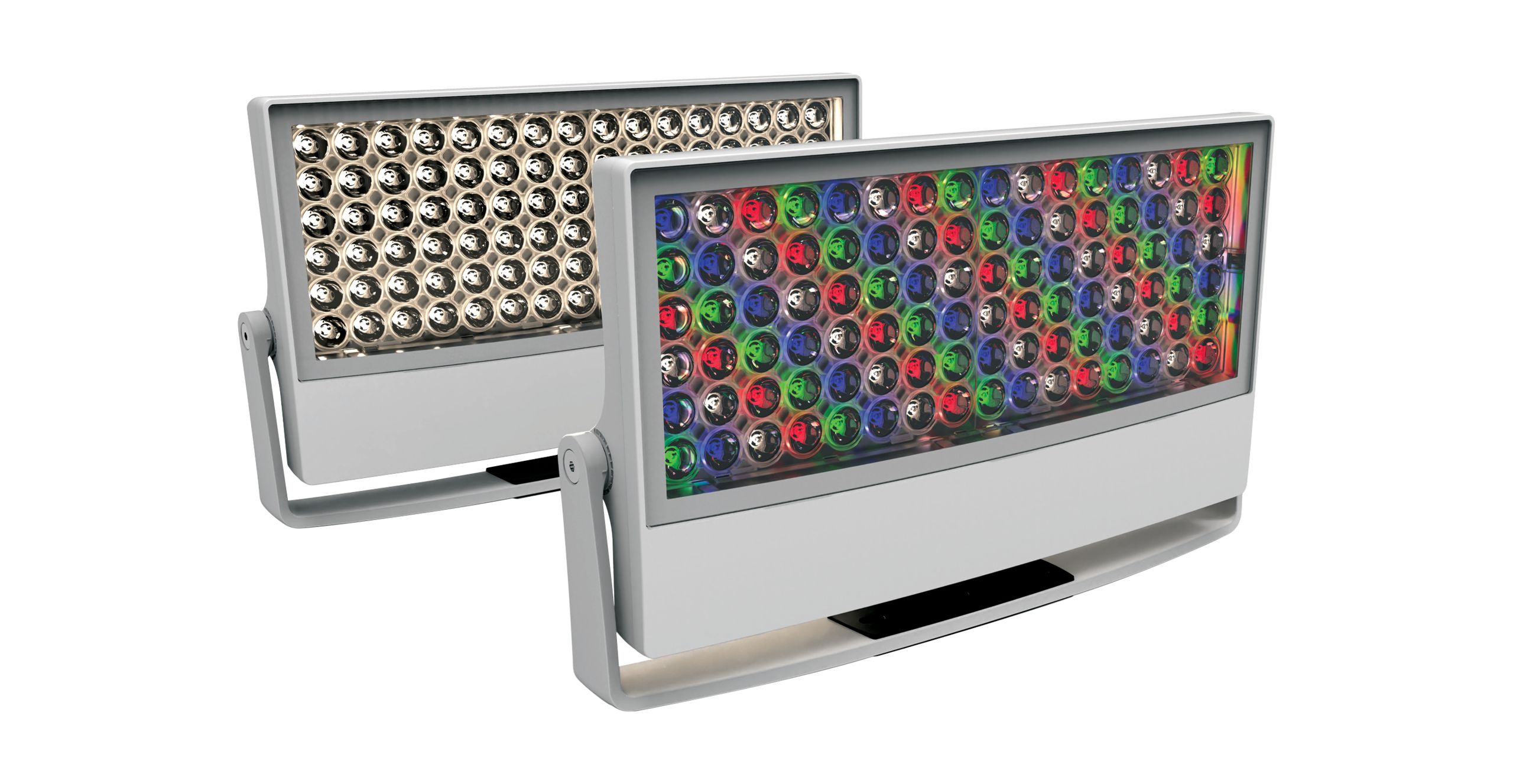

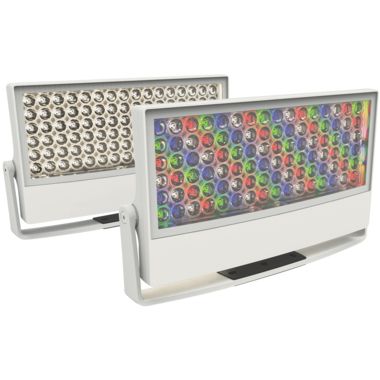

Quadralux Q8 - LS9180

An extra large, high-output spotlight designed to achieve a peak intensity of up to 1.26 Million Candela.

Configure this product Features Specifications Accessories

Product Overview

Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols. Unique and flexible mounting and glare control accessories enable installation in multiple orientations. Lighting professionals now have greater creative flexibility with the choice of designer lens options which provide superb color-over-angle consistency and blending of colors even at close blending distances. Standard LED options are also available for exceptional reach.

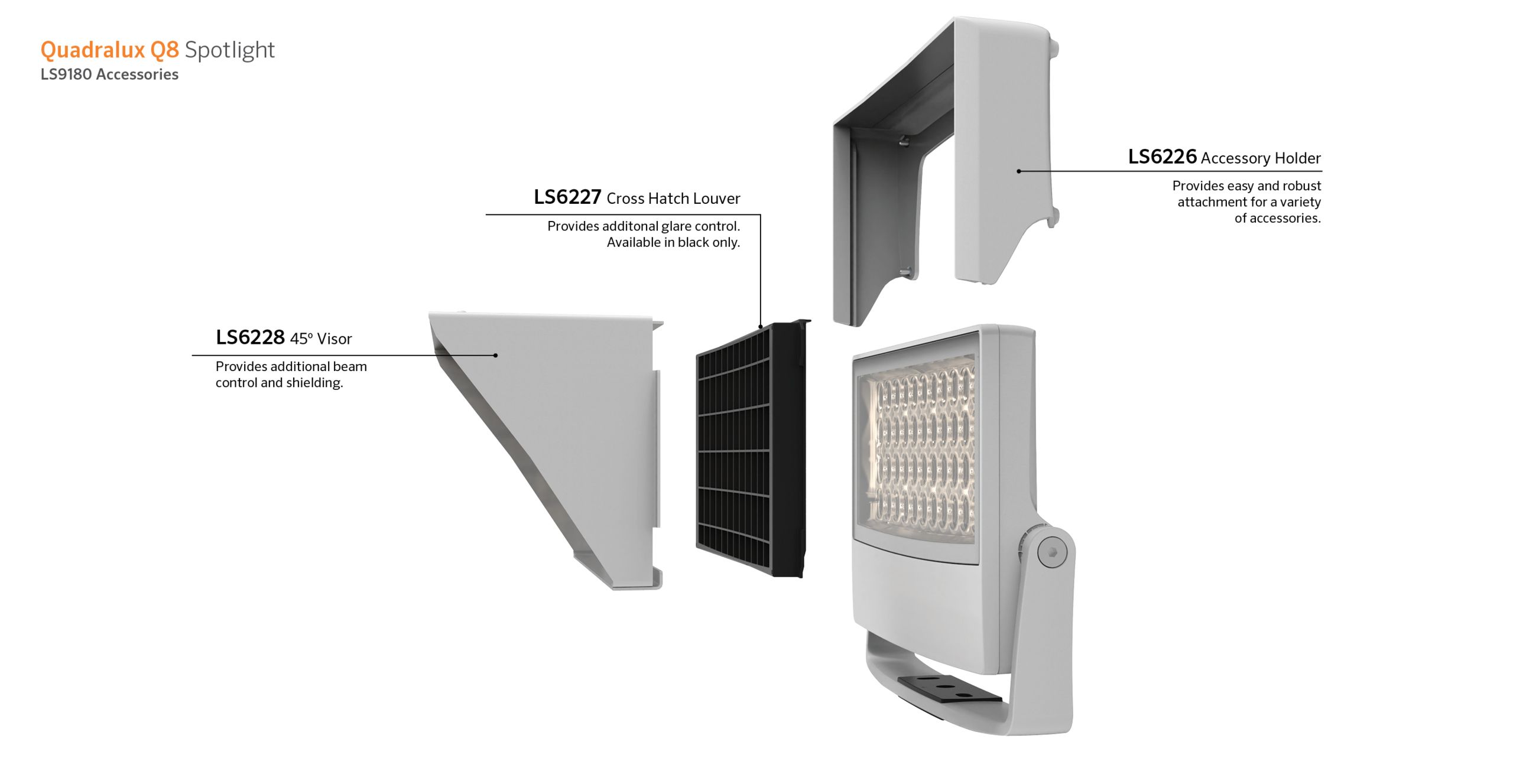

Accessories
LS6226	Accessory Holder
LS6227	Cross Hatch Louvre
LS6228	45° Louvre
LS6229	Custom Visor
LS6317	3.0" (76 mm) Pole Clamp
LS6318	4.0" (102mm) Pole Clamp
LS6319	4.5" (114mm) Pole Clamp
LS6320	5.0" (127mm) Pole Clamp

Features

Lumen Output 14,600 lm LED Power 150 W Power Consumption ≤ 160 W Typical Lifetime > 60,000 hours Input Voltage 110-277 Vac, 50/60 Hz Control Interface PowerSync™ Control Protocol DMX/RDM, Artnet (Ethernet Based), PWM, 0-10 V IP Rating IP66 / IP67 (Passes IP68 Test) IK Rating IK10 Vibration Resistance 3G Rating (ANSI 136.31) Compliance

Color Options

Data Sheet

Specifications

Accessories


LS6226	Accessory Holder
LS6227	Cross Hatch Louvre
LS6228	45° Louvre
LS6229	Custom Visor
LS6317	3.0" (76 mm) Pole Clamp
LS6318	4.0" (102mm) Pole Clamp
LS6319	4.5" (114mm) Pole Clamp
LS6320	5.0" (127mm) Pole Clamp

Downloads

Data Sheet Install Guide

DXF Files LS9180 ZIP (462.24 KB) BIM Files LS9180LED ZIP (1.34 M) IES Files LS9180 ZIP (2.42 M) Product Flyer Q6 & Q8 PDF (166.83 KB)

Technology

Product Configurator

LS9180 _ _ _ _ _ _ _ _ _ _

Reset to Default Clear Selected Add

Customise Quadralux Q8 below

Light Engine

Required

150 W (150)

LED Type

Required

Designer (D)

Ideal for applications where colour consistency and colour over angle are most important (e.g., grazing and accent lighting)

Light Source

Required

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

5,000K (70 CRI, 3 SDCM)

Dynamic Colour (4CA)

RGBA

Dynamic Colour (4BW)

RGBW with Royal Blue

Tunable White (2WT)

2,700 K - 6,500 K

Connection Type

Required

Single entry (84)

For connection to the supply circuit via flexible cable, up to 1.8m (6ft) in length. Single entry.

Single entry (77)

For connection to the supply circuit via Lumascape connection system with IP68 rated connectors. This method allows for tool free final connection to the luminaire.
