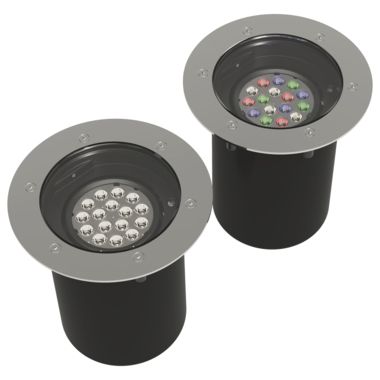

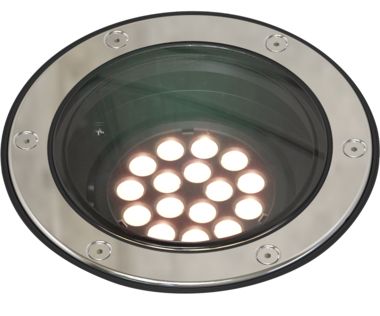

Erden E4 - LS3040

An architectural-grade, medium-powered in-ground

Product Overview

The Erden E4 is a medium-powered in-ground that combines technology and performance in a modern form factor. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols using line voltage. Available in white, color-changing and tunable white light engines.


Lumen Output 1,910 lm Power Consumption 20 W Typical Lifetime (TM21 Reported) > 60,000 hours (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 179,506 hours (B10, L90, TM21 Projected) Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 60 Hz Control Protocol DMX/RDM, Artnet, PWM, 0-10 V (sink or source) Weight 8.8 lbs (4.0kg) Drive-Over With OptiClear lens and pre-installation kit (LS644-K) IP Rating IP68 IK Rating IK10 Static Load Rating 3,968 lbs (1,800 kg) Environment Inherently protected, suitable for use in poured concrete Compliance ETL - USA & Canada CE RCM Color Options Warm White Cool White RGBA RGBW with Royal Blue Tunable White Data Sheet



LS644-K Pre-Installation Kit
LS644-2 Mounting Collar
LS6247 Snoot Array Louver
LS6248 Honeycomb Louver

Product Configurator

Customise Erden E4 below

Installation Type

Select the installation type you require.




Mounting Collar

Mounting Collar

Direct Burial

Direct Burial
