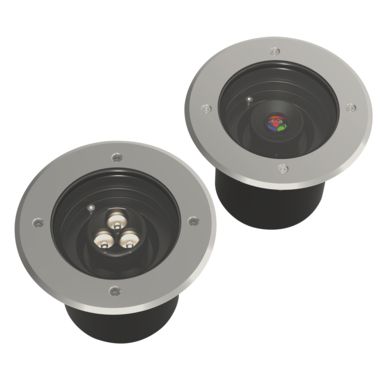

Evoca LED EV4 - LS393LED

A compact inground uplighter

Product Overview

The LS393LED is a compact inground option featuring a 6W LED module with output similar to a 50W MR16. With options for line voltage input and dimming via Lumascape d5 driver technology, this inherently protected, compact luminaire is suitable for use in many locations where MR16-based luminaires cannot be used due to heat. Internal rotation and tilt adjustability ensures the most efficient light delivery can be set according to the site conditions.


Lumen Output 550 lm Power Consumption 7.9 W Typical Lifetime (TM21 Reported) > 60,000 hours (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 86,935 hours (B10, L90, TM21 Projected) Control Protocol PWM (0-10V, DMX, DALI) Diameter 6.8" (172 mm) Static Load Rating 8,276 lb (3,750 kg) IP Rating IP68 IK Rating IK9 Compliance ETL - USA & Canada CE Color Options Warm White Cool White RGB Blue (470 nm) Data Sheet



LS647-2 Pre-Installation Mounting Collar
LS647-K Pre-Installation Mounting Kit

Product Configurator

Customise Evoca LED EV4 below

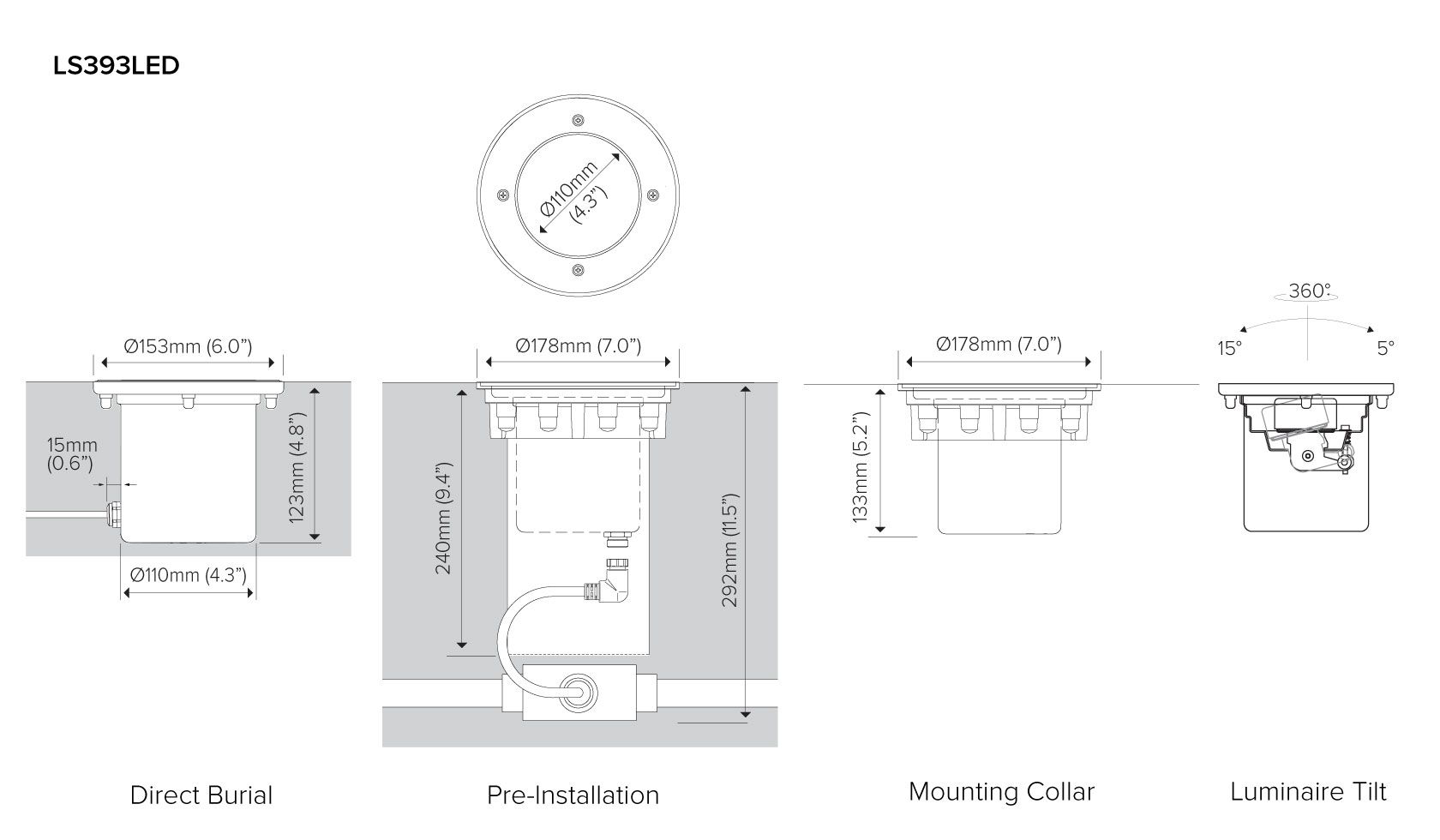

Installation Type

Select the installation type you require.




Mounting Collar

Mounting Collar

Direct Burial

Direct Burial
